LED · HYPERVISUAL Switzerland
Indoor LED walls for showrooms, lobbies and retail.
One surface, edge to edge, sized for the room. Sold, installed and maintained in Switzerland.
Indoor LED for every room.

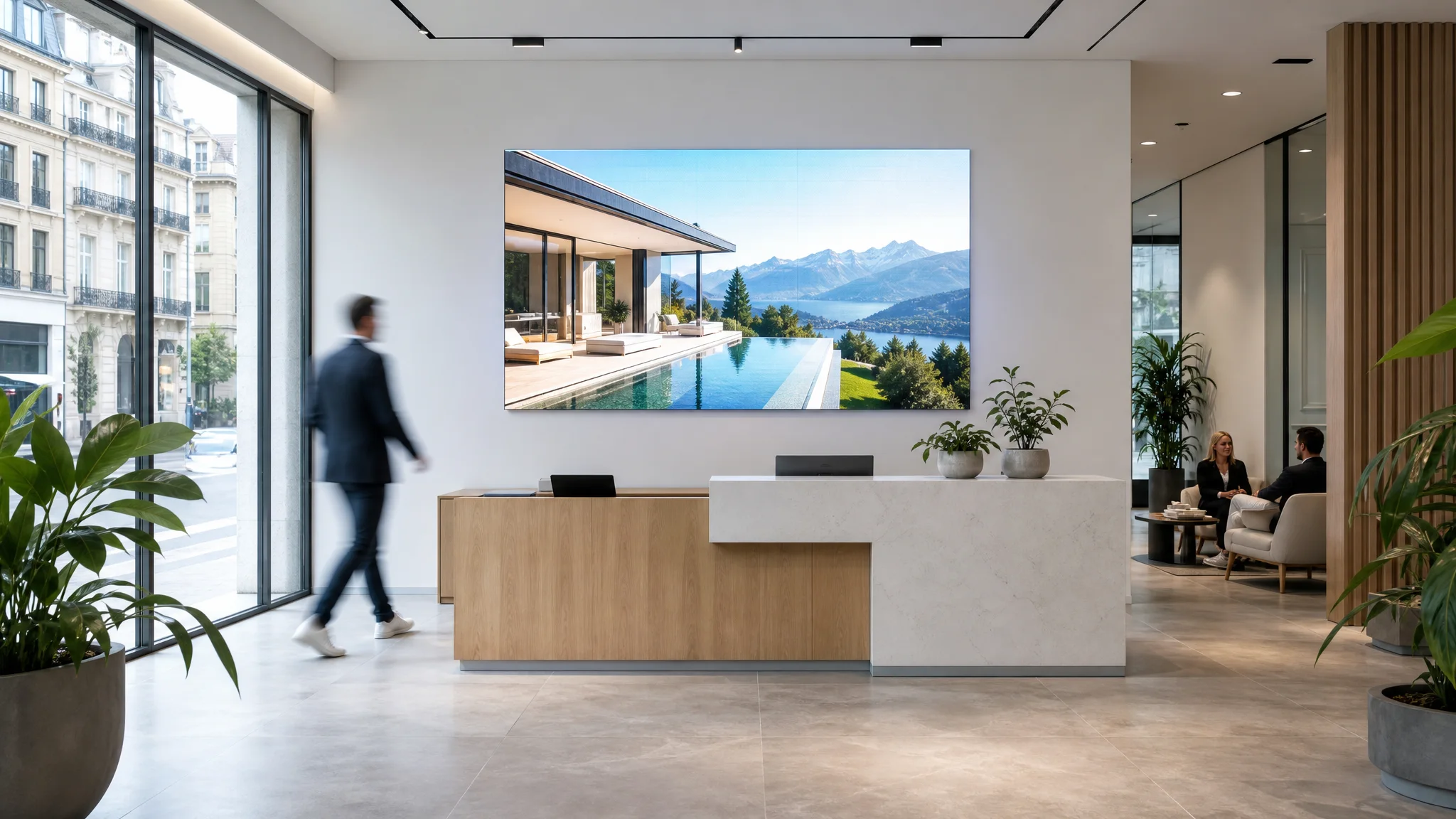

Showrooms, lobbies, boutiques and meeting rooms: each wall sized for its room.
No project in this category yet.
Draw your wall.
Draw the wall you have in mind: pull the corner or type its size, and you read its real dimensions underneath. In expert mode, you choose the ratio and read the number of panels.
One picture, no bezel, up to a whole wall.
SMD LED panels, edge to edgeYou stop designing around the black borders of a video wall: the image runs uninterrupted from one side of the room to the other. LED panels butt edge to edge and add up in both directions, so the surface is decided by the wall you have, not by the diagonals a manufacturer happens to sell.
Pitch set by viewing distance.
Pixel pitch P0.9 to P2.6The same wall can be a boardroom screen people read from a metre away or an atrium wall seen from twenty. The pitch is chosen for the nearest viewer, never for the catalogue: the closer people stand, the finer the pitch, and the more panels the same surface takes.
Serviced from front or back.

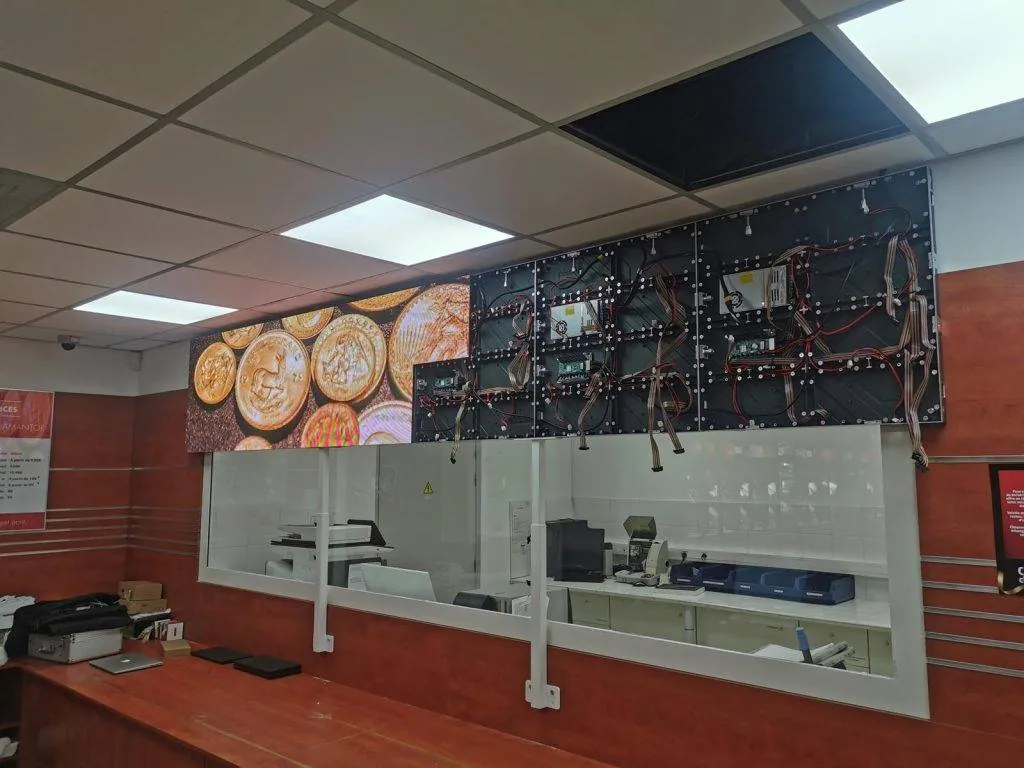

Magnetic panel extractionA wall built into joinery is not a wall you have to dismantle to fix. Panels come out one by one, magnetically, from the front when the wall sits against a partition, from the back when there is a service corridor, so a faulty module is changed without touching the ones around it.
One LED team. Six steps.
01SurveySightlines, viewing distance, wall build-up, power, ambient light: from your plans, on site if necessary.
02DesignPanel layout, frame, brackets or feet, cable routes, a written proposal.
03InstallOur own crew, our own tools, on your dates: panels hung one by one, aligned flush.
04CalibrateEvery panel addressed, colour and brightness set for the room, seams checked.
05OperateSources tested, your team shown the controls. Your own sources, or DATAVSN.
06CareSpare panels held, and the same crew that installed the wall.
No subcontractor between you and the LED wall. The people who size your wall are the people who switch it on, across Switzerland and into Europe.
What the site needs
- A load-bearing wall or slab, and the structure to hang from
- A dedicated power supply and a network point at the screen
- Joinery and integration around the wall
- Access and lifting on the day
Who does what
- HYPERVISUAL
- Survey, supply, structure, installation, calibration, commissioning, maintenance.
- You or your contractor
- Joinery, cladding, upstream electrics and network.
- Together
- The technical check, on site if necessary, the schedule around your fit-out, and the content that goes on the wall.
Buy it, then decide what runs on it.
Buy
Survey, supply, installation, commissioning. An indoor LED wall is sized for the room and its light, drawn with your architect or fit-out contractor, and maintained afterwards by the team that installed it. Indoor walls belong to a place, so we sell them; for a date rather than a place, see event LED walls.
Plan an installation LED screen salesRun
DATAVSN, our own CMS, if you want it. Never imposed. The wall takes your own sources just as well: a computer, a player, a signal chain you already own. DATAVSN adds publishing, scheduling and remote updates, and grows from there.
See DATAVSN Custom softwareWhat makes the price.
We do not publish a tariff: every wall is quoted on a brief, because every room is different. Six things move the figure, and the offer you receive lists them one by one.
- The surface and the formatSquare metres first, then the shape the room allows: flat, curved, column or corner.per m²
- The pixel pitch, so the viewing distanceThe closer people stand, the finer the pitch and the more pixels per panel.per pitch
- Recessed, wall-mounted, suspended or free-standingWhat the wall has to carry, and what we build to carry it.per mounting
- The build: frame, height, access for serviceThe structure, the reveal around the wall and the room left to open it.per site
- The content and how the wall is runYour own sources, or DATAVSN, our CMS hosted in Switzerland.optional
- Maintenance and the spare panels held for youWhat keeps the picture on, year after year, without dismantling the wall.per year
How we quote. You describe the project, we visit the site if necessary, and we come back with a written offer: panels, structure, cabling, commissioning and maintenance, line by line.
Datasheet.
An indoor wall is a permanent installation, and it is not built from the same panels as a rental screen. What follows is what you can plan with; the rest comes with the written offer, matched to your room.
- Panel
- 640 × 480 mm
- Fixed-install. Rental walls use 500 × 1’000 mm panels, a different product.
- Pixel pitch
- P1.8
- Most of our indoor walls; the range runs from P0.9 to P2.6, some at P2.
- Resolution
- 344 × 258 px
- Per panel at P1.86, and it adds up with the panels.
- Surface
- Any size
- Panels add up both ways, from a few m² to a whole wall.
- Service
- Front or back
- Panel by panel, without dismantling the wall.
- Content
- DATAVSN
- Or your own sources. Our CMS is hosted in Switzerland.
By sector.
Indoor LED on DATAVSN.
Our own CMS, hosted in Switzerland. It is available with every indoor LED wall we sell and it is never imposed: a computer, a player or a signal chain you already own drives the wall just as well.
Content and scheduling
Publish, schedule and update your screens from one place. The base of every DATAVSN installation.
Anonymous audience recognition
Foot traffic, stop rate, dwell time, attention time, age and gender brackets. Metrics only: no face is recognised.
Interactivity
Touch, sensors and live data when the LED wall has to respond, not just display.
Your questions.
Answered straight.
Anything specific to your room is settled when we size the wall.
Which pixel pitch do I need for my viewing distance?
It follows the nearest viewer, not the size of the wall. Under two metres, P0.9 to P1.5. Between two and six metres, P1.5 to P1.9. Beyond six, P1.9 to P2.6, where the matrix disappears. Ambient light and content shift the choice, so we confirm it with you, on your plans or on site if necessary.
How big can the wall be in my room?
There is no fixed maximum: panels add up in both directions. The room sets the limit: ceiling height, the load the wall or slab can take, the power available, and how far people stand. We check all four, on your plans or on site if necessary, and come back with the largest wall the room can carry.
Does an LED wall get hot? Does it make noise?
It draws power and gives off heat, like any large display. We choose panels for the room: fanless ones where silence matters, and we leave the air path a recessed wall needs. The heat load is written into the offer, so your ventilation can account for it.
Who does the joinery and the electrics?
You do, through your fit-out contractor and to our drawings: the recess, the cladding, a dedicated supply and a network point at the screen. We bring the frame, the panels, the signal chain, the calibration and the lifting. All of it is written down before the offer.
What happens if a panel fails?
It comes out on its own, from the front when the wall sits against a partition, from the back when there is a service corridor, and is replaced without touching its neighbours. We hold spare panels for the walls we install.
Can I drive the content remotely?
Yes. An indoor LED wall can run on DATAVSN, our own CMS hosted in Switzerland: publish, schedule and update from anywhere, with anonymous audience recognition and interactivity as later layers. It stays optional: the wall takes your own sources just as well.
Let's talk about
your LED wall
Tell us the room. We come back with a written offer for the right indoor LED wall, sized and priced, not a catalogue.
- Where the wall goes. The room, the wall, and the surface you have in mind.
- What it is for. Reception, showroom, meeting room, retail, and what will play on it.
- The size you imagine, or the distance people will read it from.
