OLED · HYPERVISUAL Switzerland

Transparent OLED kiosks and totems for shops, museums and lobbies.

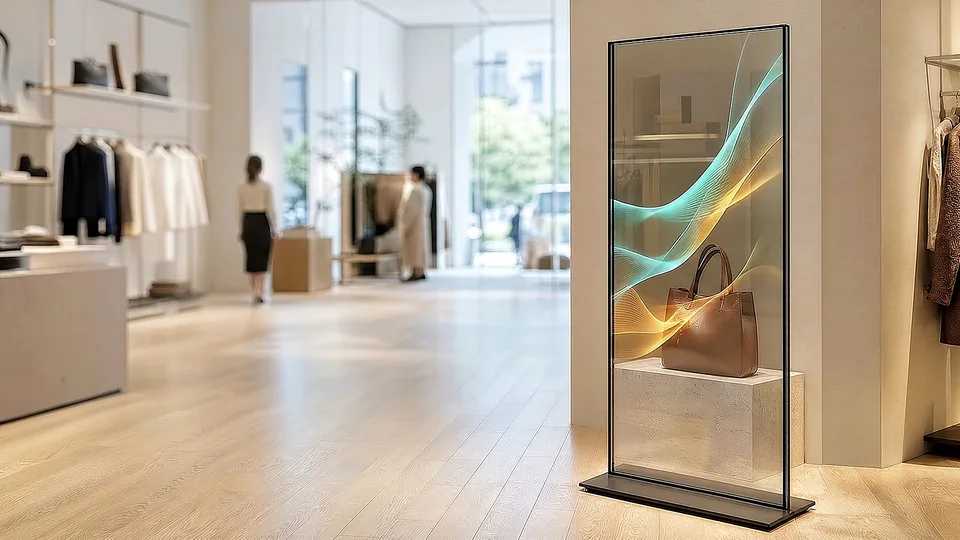

A free-standing totem whose screen is a transparent OLED panel: the content plays on the glass, the object behind stays in view. Sold and installed in Switzerland.

Request a quote

Transparent totems in use.

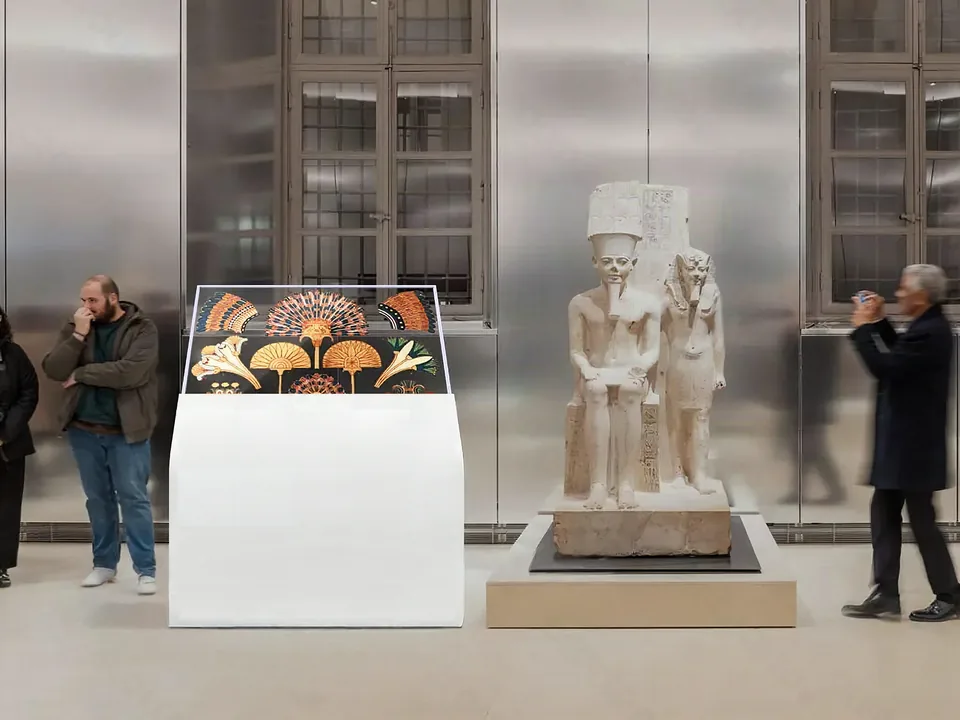

In a shop, a museum, a hotel or an airport: a screen on its own base, with the object in view behind the glass.

No example in this category yet.

Pick your totem.

Two products, drawn to scale beside a person of 1.75 m: the transparent totem, and the transparent totem with a payment terminal.

Transparent totems drawn to scaleA transparent totem, 724 millimetres wide and 1’809 millimetres high, and a transparent totem with a payment terminal, 810 millimetres wide and 2’002 millimetres high, each drawn to scale beside a person of 1.75 metres. The selected product is shown in cyan.724 mm1’809 mm810 mm2’002 mm
724 × 1’809 mm

Touch: 724 × 1’809 × 60 mm, base 307 mm deep, 45 kg · Display only: 772 × 1’781 × 361 mm, 71 kg · 55-inch, 1920 × 1080

Screen sizes: 30, 48, 55 and 77 inches; the dimensions shown are those of the 55-inch. Three colours: silver grey, gold, dark blue. For sale, for indoor use.

Send this to my brief

Format

The product stays in view.

43% transparent

The screen is a transparent OLED panel: the content plays on the glass and the object placed behind it stays visible. No wall and no furniture needed: the totem stands on its own base.

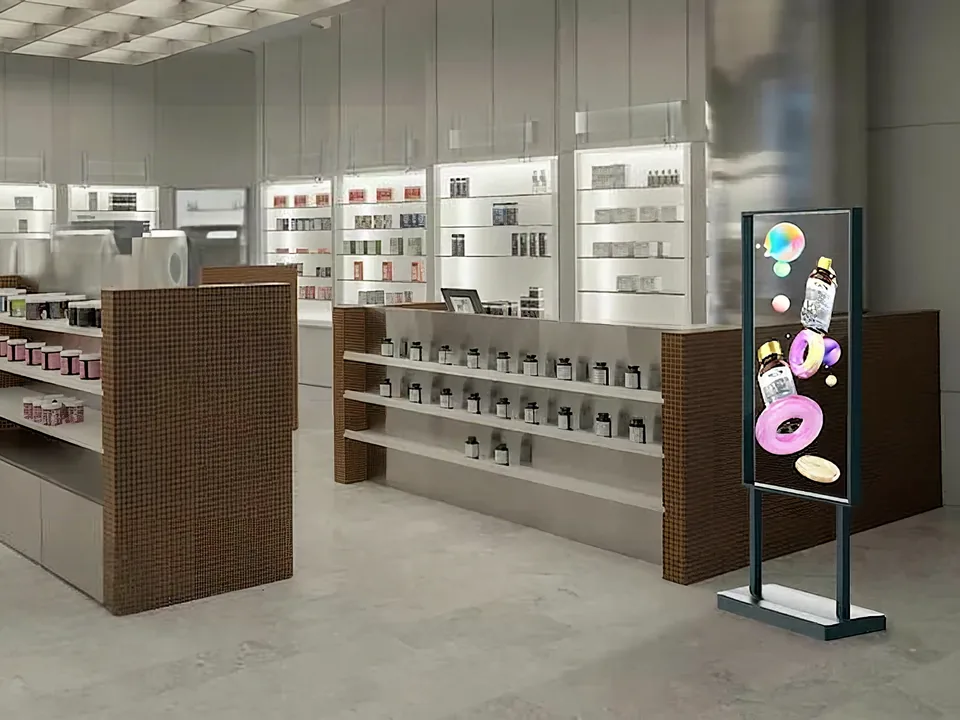

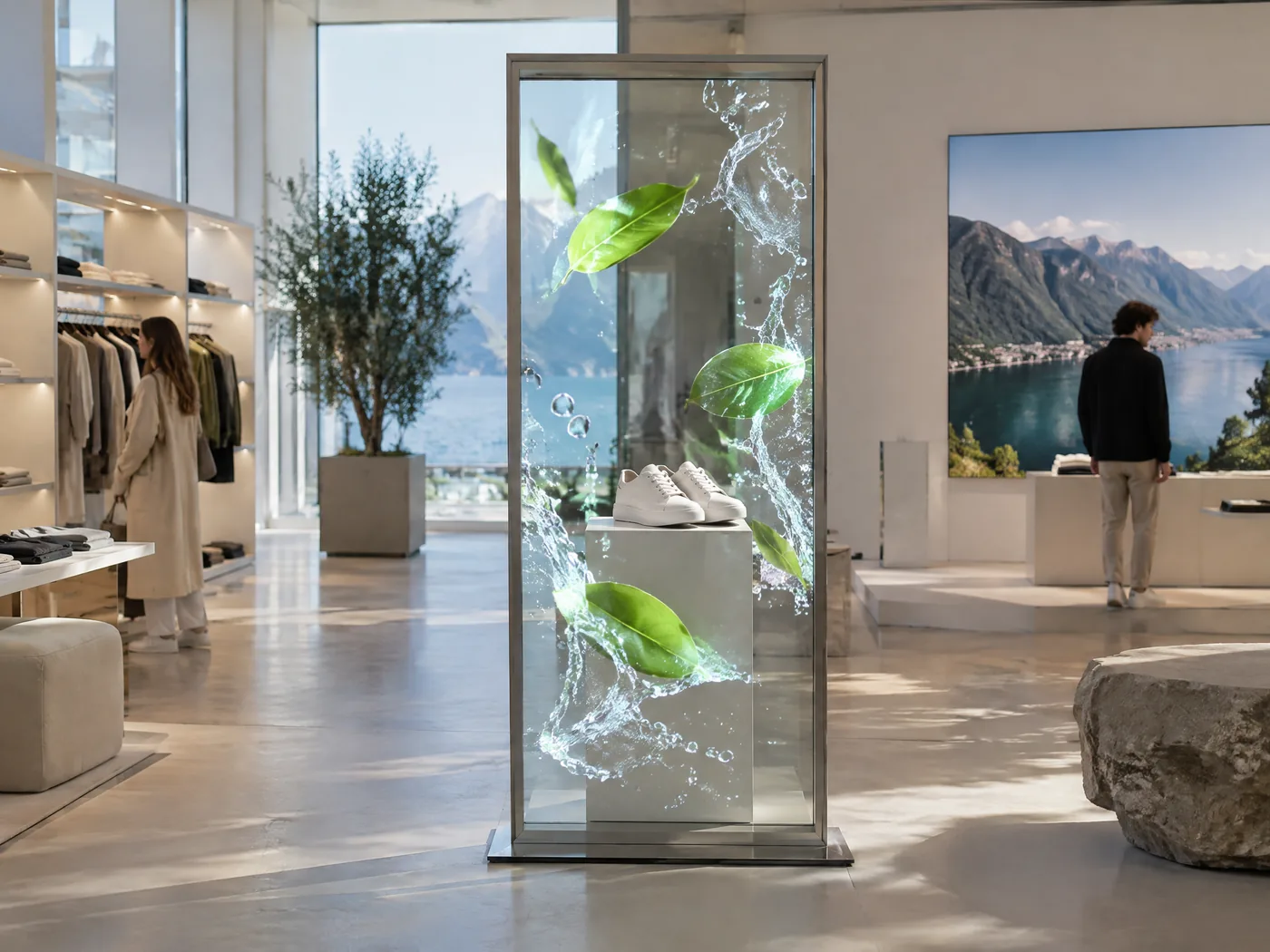

Transparent totem with a product visible behind the content

Information, touch, or payment.

Two products

The transparent totem shows content, with or without touch, for information and product presentation. The transparent totem with a payment terminal is a self-service kiosk: the visitor browses and pays on the spot.

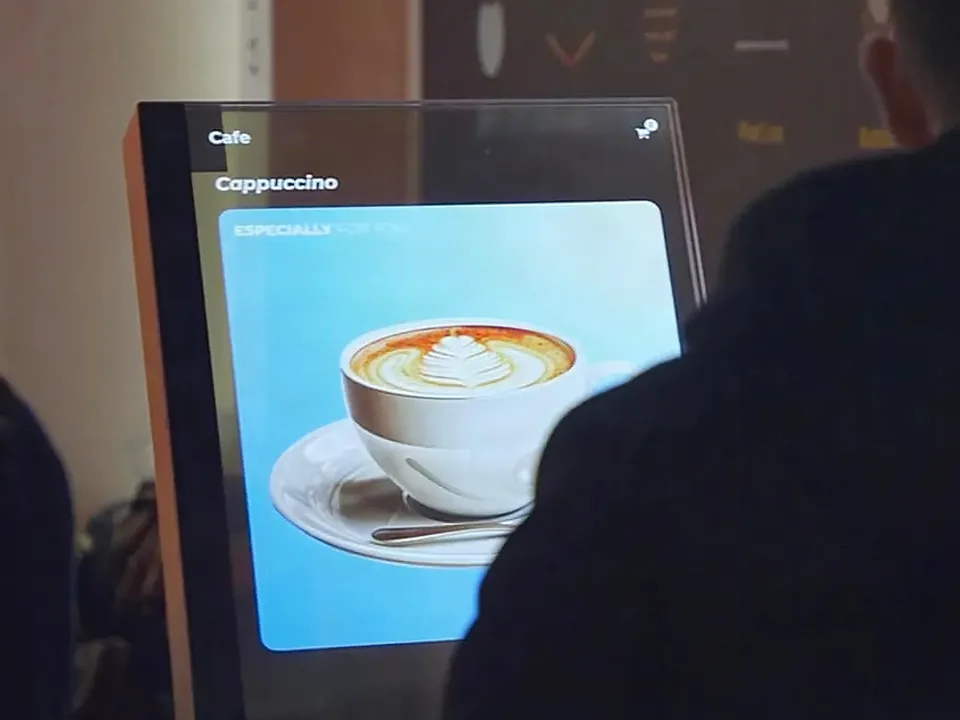

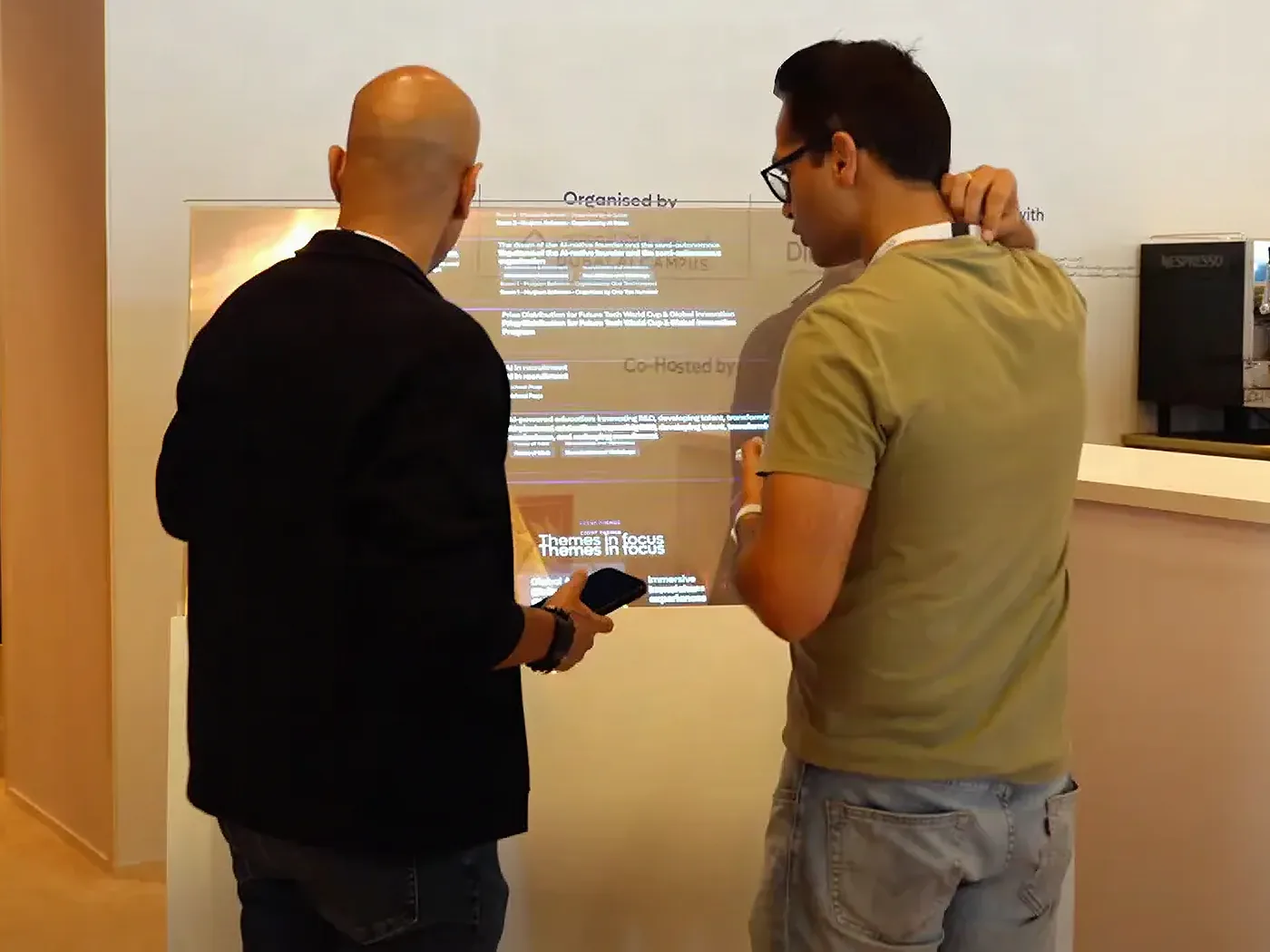

Visitor using a transparent self-service kiosk with a payment terminal

Four screen sizes, three colours.

30 · 48 · 55 · 77 inches

Four screen sizes, in silver grey, gold or dark blue, with a body in aluminium and tempered glass. A contrast of 150’000:1 and a 178° viewing angle keep the picture readable from up close.

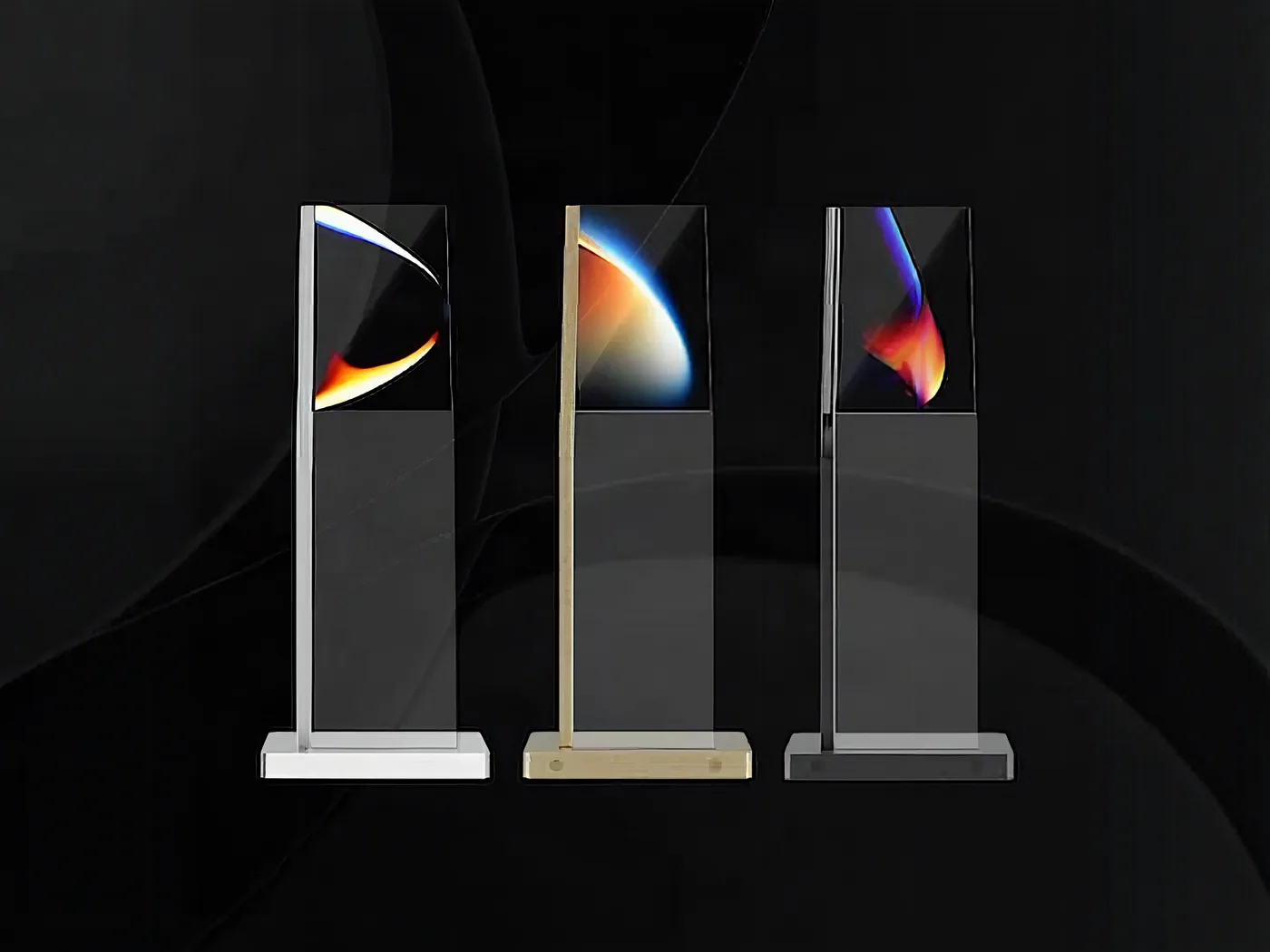

Transparent totems in silver grey, gold and dark blue

One team. Six steps.

  1. Line illustration: in a shopping mall atrium, the future screen is outlined in dashes on the wall above a shop entrance, a technician measures it with a laser meter while the client holds a tablet showing the project01
    SurveyThe place, the light, what stands behind the glass, power at the totem: from your plans, on site if necessary.
  2. Line illustration: the design studio of the integrator, two people at a desk with monitors showing the panel layout of a giant LED wall, printed elevations on the wall, an LED panel, a video processor and an equipment rack02
    DesignScreen size, colour, touch or not, with or without a payment terminal, a written proposal.
  3. Line illustration: the reception hall as a work site, a scissor lift in front of the wall, a technician fixing the panel, half the structure already covered, flight case and toolbox on the floor03
    InstallOur own crew, our own tools, on your dates: the totem delivered, set on its base and connected.
  4. Line illustration: a showroom in the evening, the display lit on the back wall, a technician on a flight case with a laptop and a colour probe on a tripod04
    TestThe totem switched on and checked with your own content, the object in place behind the glass.
  5. Line illustration: a hotel lobby with a giant screen lit on the back wall, a technician handing the control tablet to the client, guests with suitcases watching05
    OperateSources tested, your team shown the controls. Your own HDMI source, or a built-in Android player.
  6. Line illustration: the hotel lobby, one panel removed from the giant screen and held by a technician on a stepladder, a colleague with a laptop plugged into the wall, an open case of spare panels and tools06
    CareA 2-year warranty, and the same crew that installed the totem.

No subcontractor between you and the totem. The people who plan your totem are the people who install it, across Switzerland.

Before we come

What the site needs

  • A power outlet at the totem
  • A flat floor indoors, out of direct sunlight
  • Room behind the glass for the object you want to show
  • Access to the place on the day
One team

Who does what

HYPERVISUAL
Survey, supply, installation, test, commissioning, warranty.
You or your contractor
The power supply at the totem, and the object shown behind the glass.
Together
The technical check, on site if necessary, the schedule, and the content that goes on the glass.

Bought once, installed by us.

Purchase

Supplied and installed

Transparent totems are sold, not rented. We supply the totem, with or without a payment terminal, install it in Switzerland and cover it with a 2-year warranty.

Request a quote See the two products
Content

Your content

Your own content, nothing imposed. The totem shows the videos, images and text you bring, from any HDMI source or from an optional built-in Android player.

Your content

The price, explained.

We do not publish a tariff: every project is quoted on a brief, because every place is different. Five things move the figure, and the offer you receive lists them one by one.

Request a quote
Written offer, line by lineTransparent totems
  1. The productA totem, or a totem with a payment terminal.
    per product
  2. The screen size30, 48, 55 or 77 inches.
    per size
  3. How manyOne totem, or several in the same place.
    per piece
  4. The optionsTouch, a built-in Android or Windows player.
    per option
  5. Delivery and installationWhere the totem goes, access to the place, and the installation itself.
    per site

How we quote. You describe the place, what stands behind the glass and the totem you have in mind, and we come back with a written offer, line by line.

TotalOn your brief

Datasheet.

Two products, for sale. What follows is what you can plan with; the rest comes with the written offer.

Front view of the 55-inch transparent touch totem The 55-inch transparent touch totem seen from the front: 724 millimetres wide and 1’809 millimetres high. 55-inch touch totem, front view 724 mm 1’809 mm 60 mm deep · base 307 mm deep · 45 kg
Front view of the 55-inch touch totem: 724 mm wide and 1’809 mm high, on a base 307 mm deep.
Totem, touch
724 × 1’809 mm
55-inch. 60 mm deep, base 307 mm deep, 45 kg. Aluminium, tempered glass and sheet metal.
Totem, display only
772 × 1’781 mm
55-inch, frameless on one side, tempered glass. 361 mm deep, 71 kg. HDMI, DisplayPort, USB and RS232 in the base.
Totem with payment
810 × 2’002 mm
55-inch self-service kiosk. 810 mm deep, 81.5 kg. Capacitive touch and a Windows PC as options.
Screen sizes
30 · 48 · 55 · 77 inches
No made-to-measure size.
Colours
Three
Silver grey, gold, dark blue.
Screen
43% transparent
1920 × 1080 on the 55-inch. 150’000:1 contrast, 200 to 600 nits, self-adjusting, 178° viewing angle, 10-bit colour.
Player
Optional
Built-in Android 11 player as an option, Windows possible. HDMI input.
Power
Under 280 W
100 to 240 V. Under 600 W for the totem with payment and its PC. 0 to 40 °C, 20 to 80% humidity.
Use
Indoors
Never in direct sunlight.
Warranty
2 years
HYPERVISUAL warranty.
ForShops, museums, exhibitions, hotels, airports, banks, offices and hospitals, for sale only.
ProductsThe transparent totem, with or without touch, and the transparent totem with a payment terminal.
PaymentThe payment terminal is the one used in our self-service kiosks.

Your content, on the glass.

A transparent totem shows the content you bring, from any HDMI source or from an optional built-in Android player.

  1. Videos and images

    Your films, product shots and visuals, shown in front of the object they talk about.

  2. Information

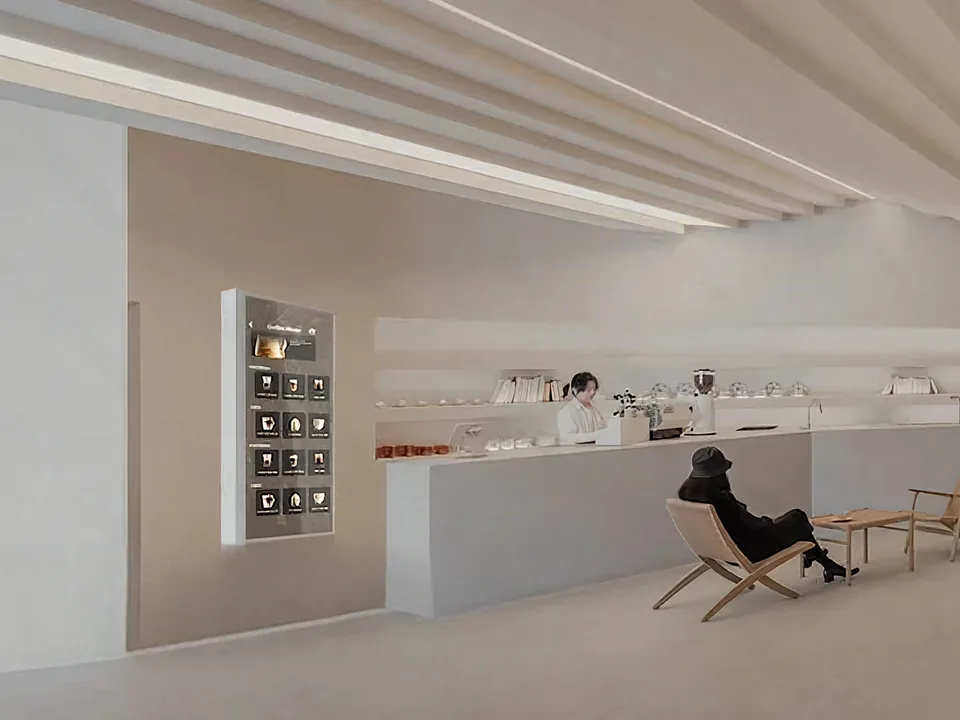

    Opening hours, a programme, a product sheet: the totem works as an information terminal.

  3. Touch content

    With the touch option, visitors browse a catalogue or a product presentation on the glass itself.

Request a quote

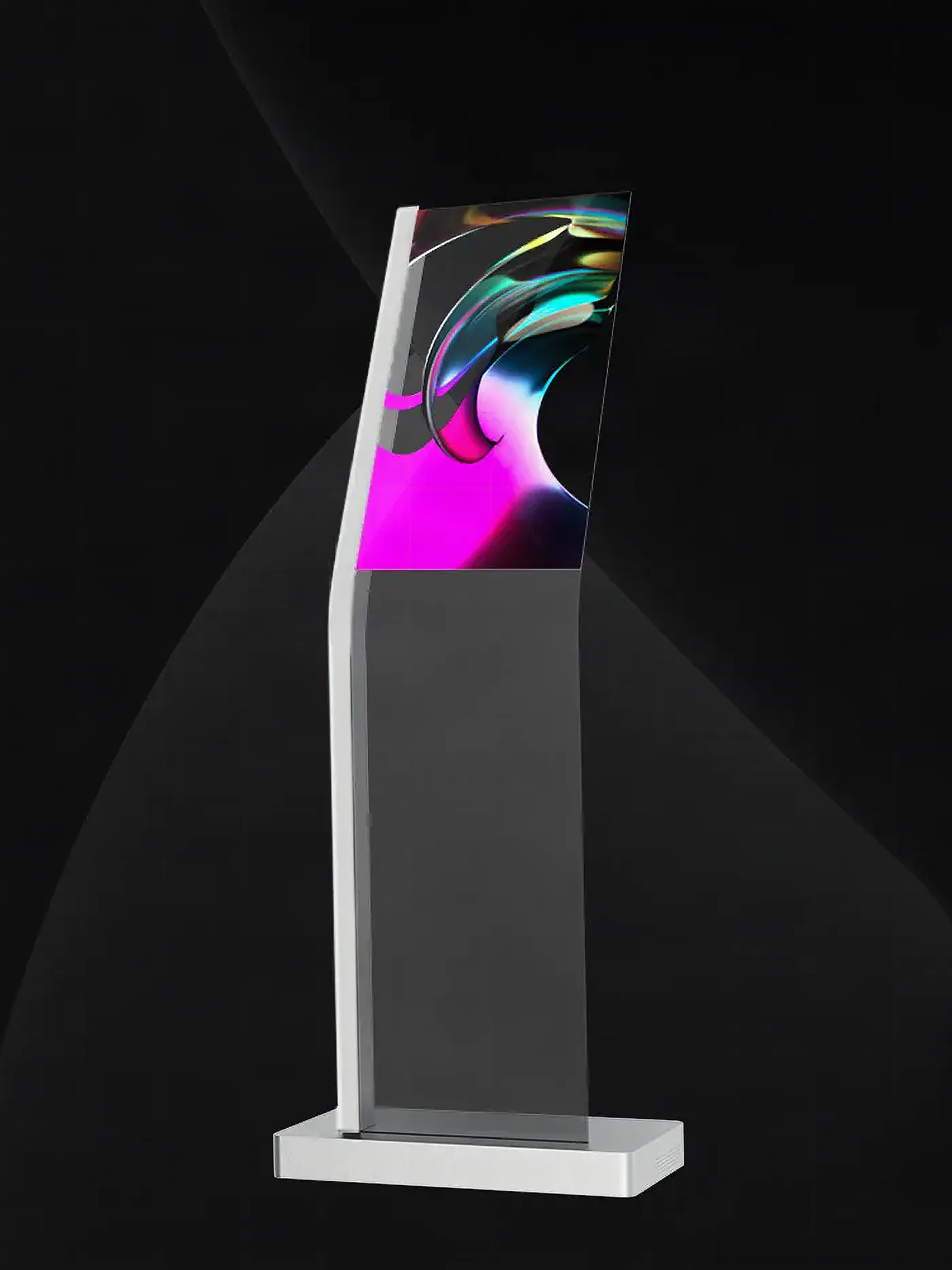

Content playing on a transparent totem in front of an object
The picture you bring plays on the glass, in front of the object it talks about.

Your questions.
Answered straight.

Anything specific to your place is settled with the written offer.

Can I rent a transparent totem?

No. Transparent displays are sold, not rented: we supply and install them in Switzerland, with a 2-year warranty.

What is the difference between the two products?

The transparent totem shows content, with or without touch, for information and product presentation. The transparent totem with a payment terminal is a self-service kiosk where the visitor also pays.

What sizes and colours are available?

Four screen sizes: 30, 48, 55 and 77 inches, with no made-to-measure size. Three colours: silver grey, gold and dark blue.

Can it stand outdoors or in the sun?

No. A transparent totem uses a transparent OLED panel: it is an indoor product and must stay out of direct sunlight.

Is it a touchscreen?

Touch is an option: the 55-inch totem comes with touch or as a display only, and the totem with payment takes a capacitive touch layer.

What do I need to run content on it?

An HDMI source is enough. An Android player can be built in as an option, and a Windows PC is possible.

Other Digital Signage solutions.

Line illustration of a transparent OLED display in a display case

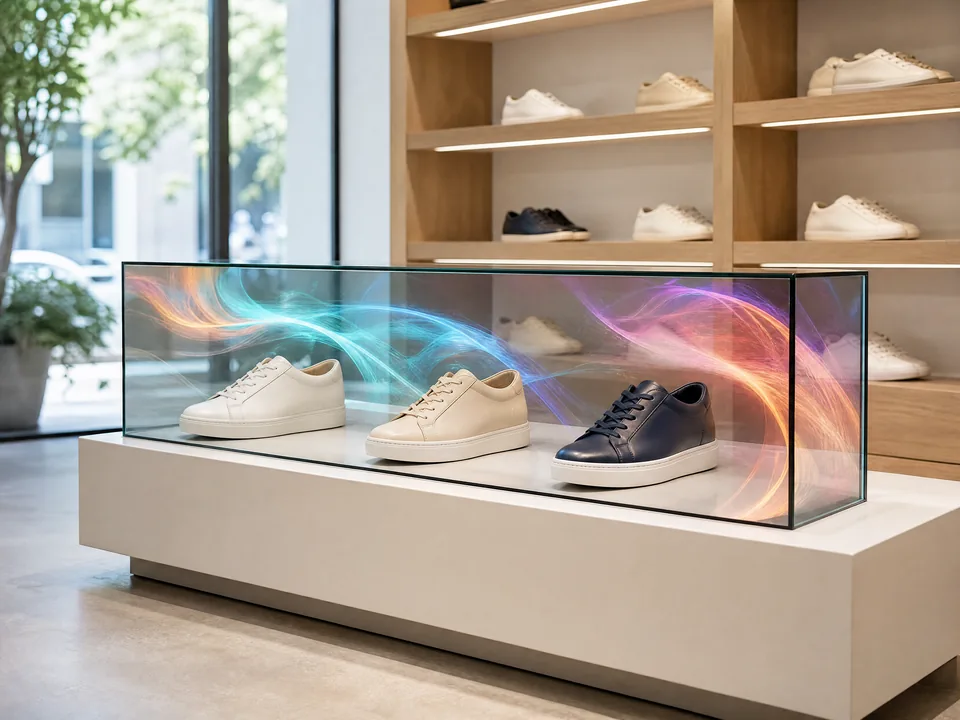

Transparent OLEDA see-through screen for display cases and counters, read from up close.
 Line illustration of a transparent MicroLED display case in a jewellery boutique, a customer touching the glass
Transparent MicroLEDSee-through glass that shows content and keeps the view behind it.
 Line illustration of a shop glass facade where the picture seems to float behind the glass
Invisible holographic LEDA frameless transparent LED screen set behind the glass: the picture seems to float in the window.
Transparent totems in Switzerland

Let's talk about
your transparent totem

Tell us the place and what stands behind the glass. We come back with a written offer for the totem you need, sized and priced, not a catalogue.

  1. The product you have in mind. A totem, or a totem with a payment terminal.
  2. The place. A shop, a museum, a lobby or a showroom, indoors and out of the sun.
  3. The content you have, or what you would like to show.
Request a quote Pick your totem

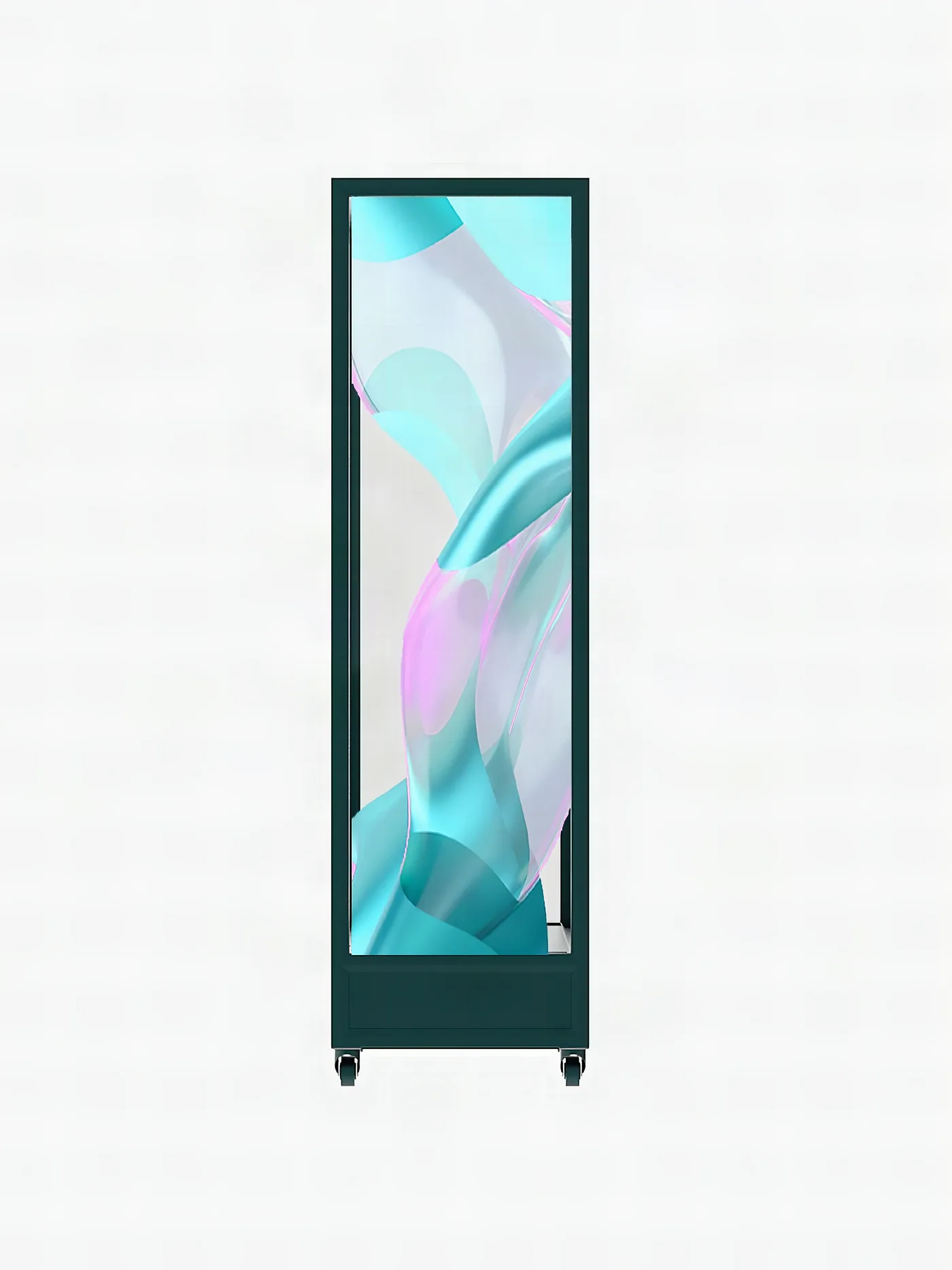

Transparent totem in a shop, the product visible behind the content
