Open frame displays: screens made to be built into your furniture.

An LCD screen delivered without a housing, on a bare chassis, ready to be built into a counter, a piece of furniture or a wall. You build the furniture, we supply the screen and its dimensions.

Request a quote

Open frame displays in use.

In shop furniture, a pop-up store, a welcome desk or a wall: the screen disappears into the joinery, only the picture shows.

No example in this category yet.

Pick your size.

Five sizes, drawn to scale one inside the other, beside a person of 1.75 m. Choose one to see the dimensions your joiner needs.

Open frame display sizes drawn to scaleFive open frame displays, from 24 to 55 inches, drawn to scale one inside the other beside a person of 1.75 metres. The selected size is shown in cyan with its width and height.1’233.8 mm704.6 mm1’050.6 mm610.3 mm726.5 mm420.9 mm618 mm360 mm564.4 mm340.4 mm
726.5 × 420.9 mm

52 mm deep · 1’000 nits · Full HD, IPS panel · light sensor that adapts the brightness

Every size mounts in portrait or landscape and takes touch as an option. Smaller than 24 inches: on special request. For sale, for indoor use.

Send this to my brief

Format

The screen vanishes into your furniture.

No housing

An open frame display comes without a housing, on a bare chassis with a VESA mount at the back. Built flush into a counter, a piece of furniture or a wall, it shows only the picture, in portrait or in landscape.

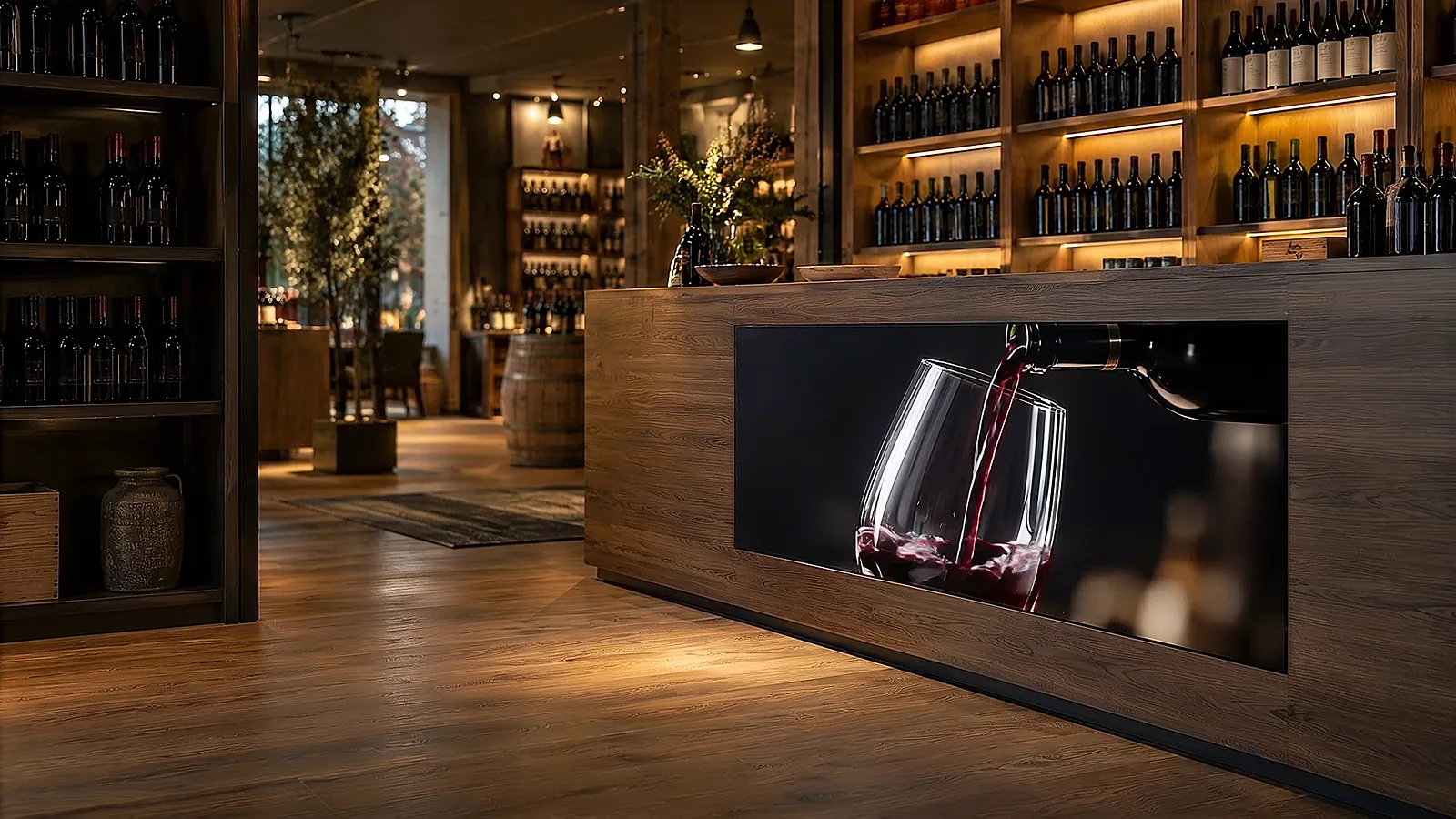

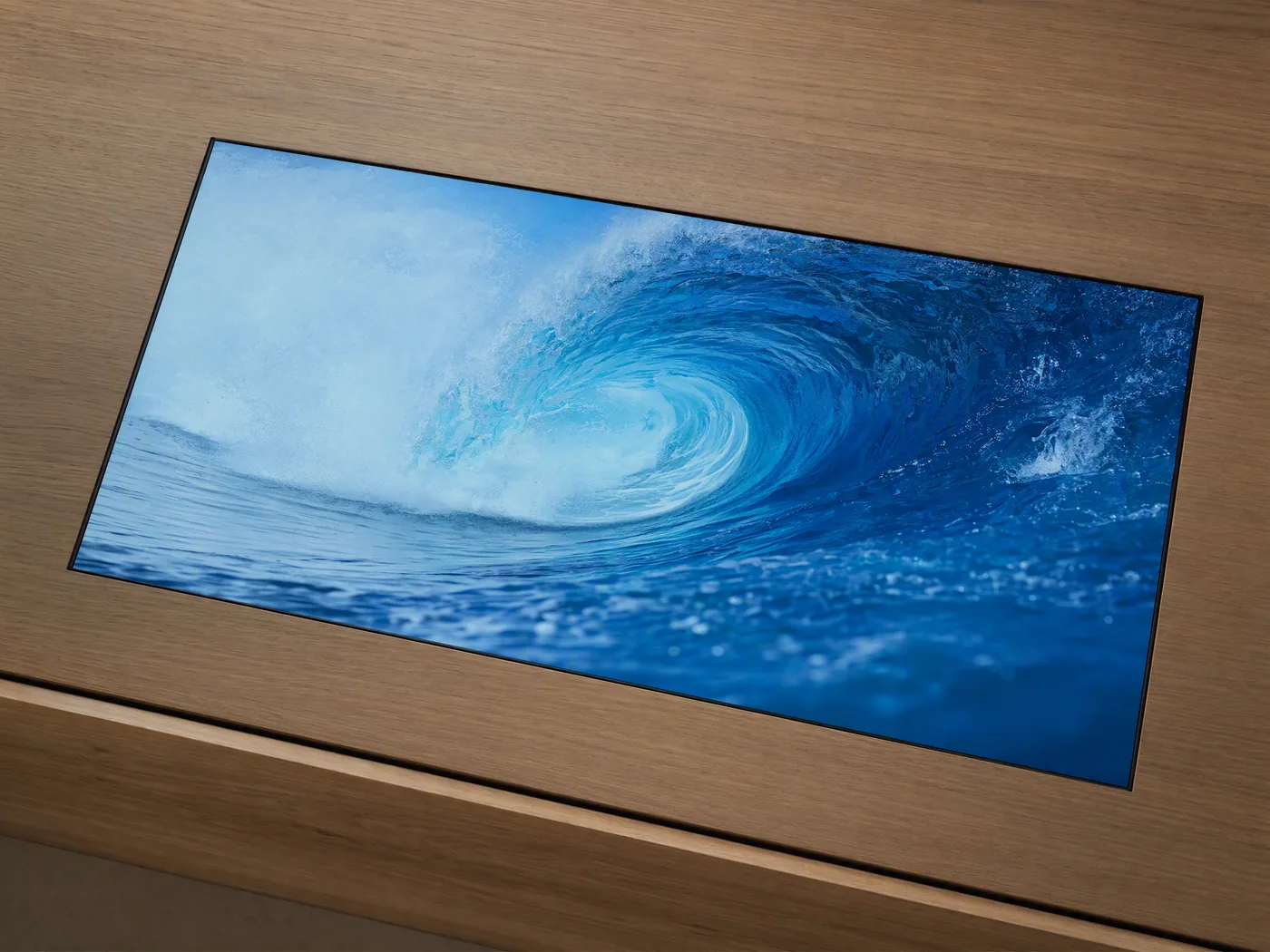

Open frame display built flush into a piece of furniture, only the picture showing

The dimensions your joiner needs.

Five sizes

You, your joiner or your shopfitter build the furniture; we supply the screen. Each size comes with its exact width, height and depth, and the clearance to leave behind it for ventilation.

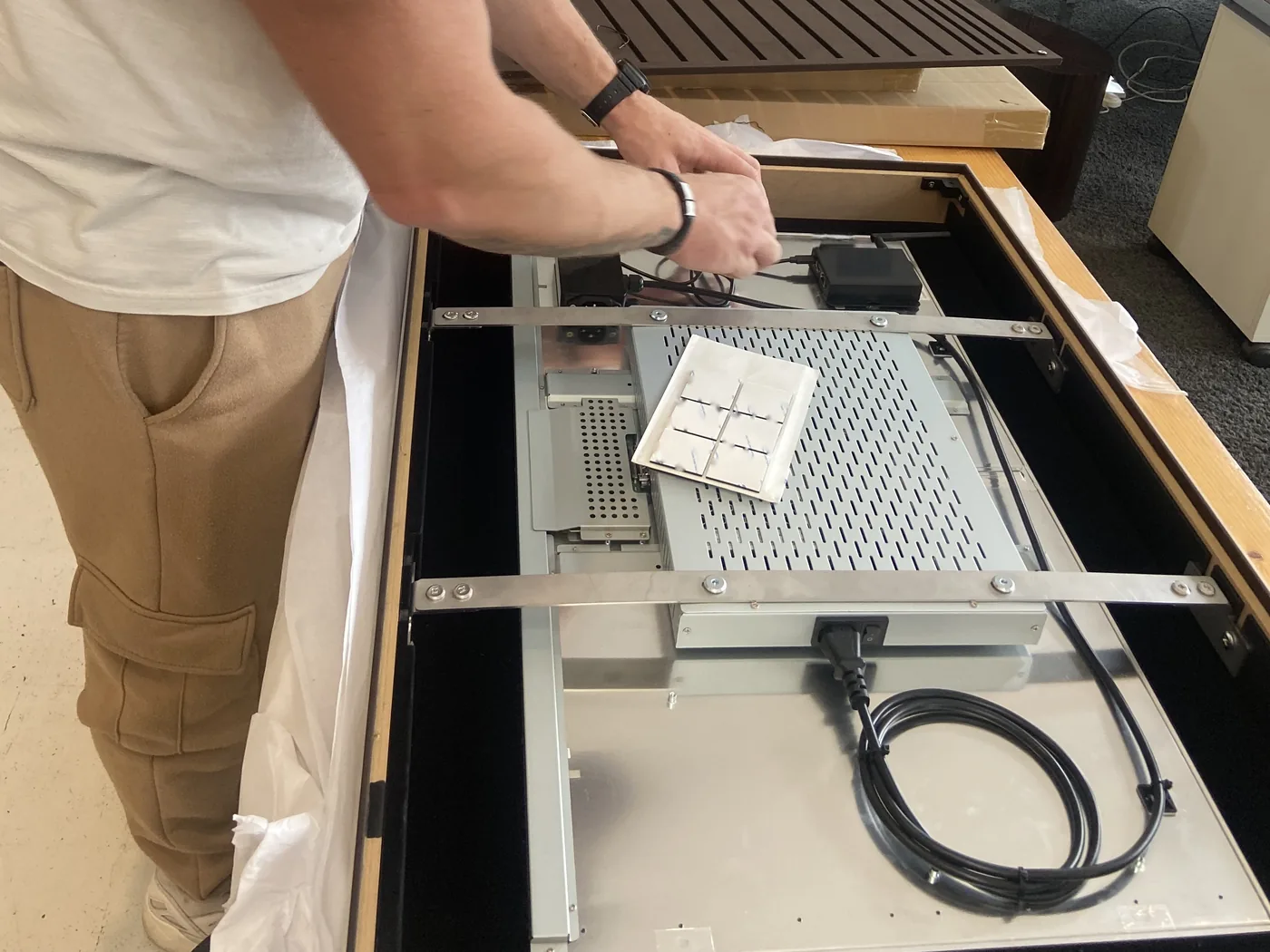

An open frame display being fitted into a piece of furniture

From 500 to 1’500 nits.

Brightness

Standard models give 500 nits; the 27-inch comes in 500, 1’000 or 1’500 nits, and the 32-inch gives 1’000 nits with a light sensor. Touch is an option on every size.

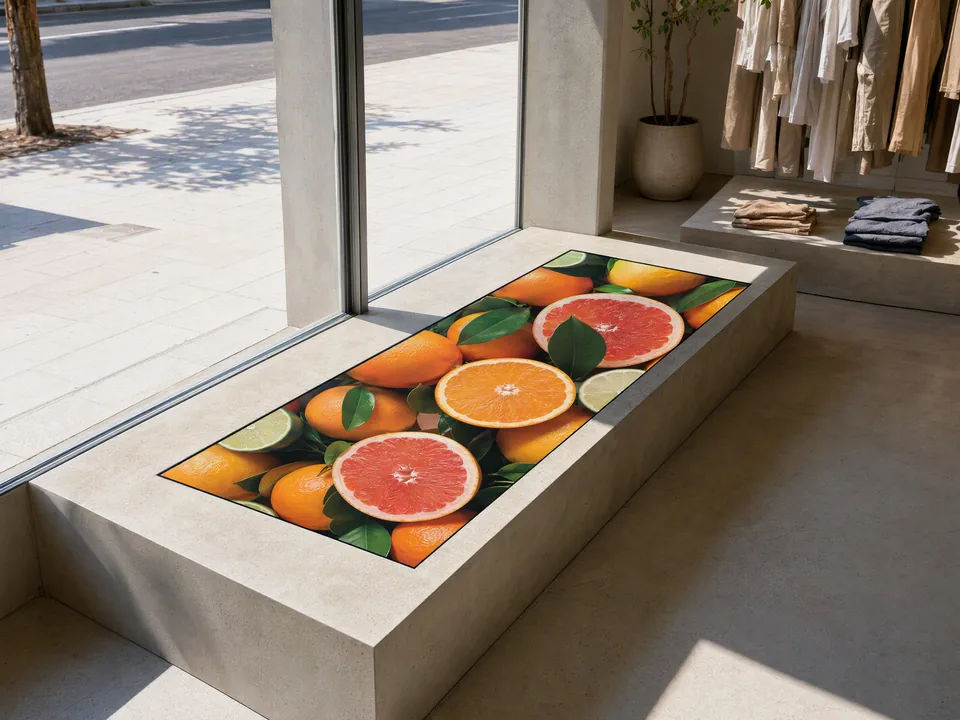

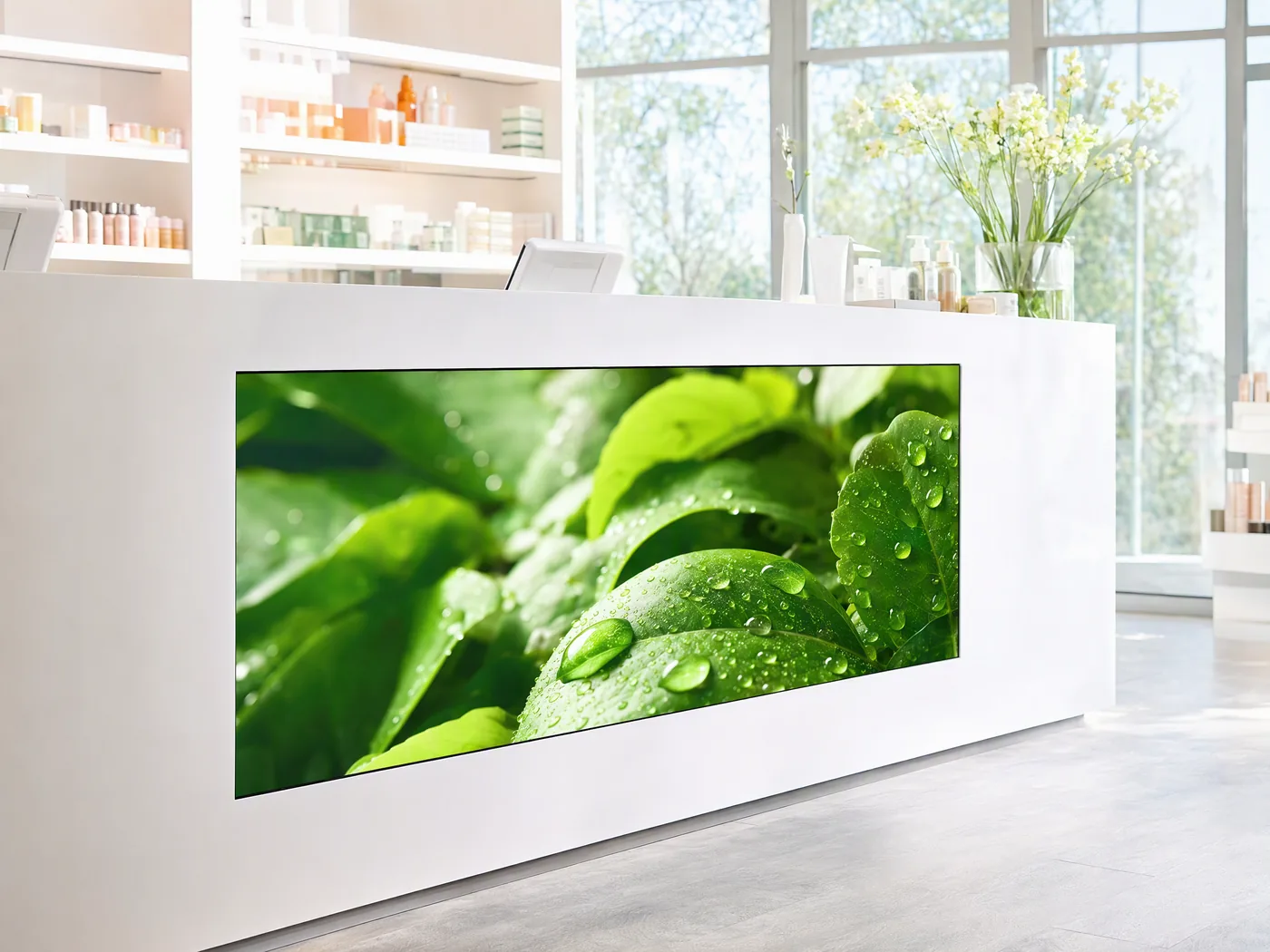

Open frame display staying readable in a bright interior

One team. Six steps.

  1. Line illustration: in a shopping mall atrium, the future screen is outlined in dashes on the wall above a shop entrance, a technician measures it with a laser meter while the client holds a tablet showing the project01
    SurveyThe furniture or the wall, the light, power and network behind it: from your plans, on site if necessary.
  2. Line illustration: the design studio of the integrator, two people at a desk with monitors showing the panel layout of a giant LED wall, printed elevations on the wall, an LED panel, a video processor and an equipment rack02
    DesignSize, portrait or landscape, touch or not, the cut-out and the ventilation clearance, a written proposal.
  3. Line illustration: the reception hall as a work site, a scissor lift in front of the wall, a technician fixing the panel, half the structure already covered, flight case and toolbox on the floor03
    InstallOur own crew, our own tools, on your dates: the screen fitted into your furniture and connected.
  4. Line illustration: a showroom in the evening, the display lit on the back wall, a technician on a flight case with a laptop and a colour probe on a tripod04
    TestThe screen switched on and checked with your own content, flush with the joinery.
  5. Line illustration: a hotel lobby with a giant screen lit on the back wall, a technician handing the control tablet to the client, guests with suitcases watching05
    OperateSources tested, your team shown the controls. Your own sources, or DATAVSN.
  6. Line illustration: the hotel lobby, one panel removed from the giant screen and held by a technician on a stepladder, a colleague with a laptop plugged into the wall, an open case of spare panels and tools06
    CareA 2-year warranty, and the same crew that installed the screen.

No subcontractor between you and the screen. The people who size your screen are the people who switch it on, across Switzerland.

Before we come

What the site needs

  • Furniture or a wall built to the dimensions of the screen
  • Clearance behind the screen for ventilation
  • A power outlet and a network point behind the furniture
  • Access to the place on the day
One team

Who does what

HYPERVISUAL
Survey, supply, installation, test, commissioning, warranty.
You or your contractor
The furniture or the wall, built by you, your joiner or your shopfitter, and the power supply.
Together
The technical check, on site if necessary, the drawings exchanged with your joiner, and the content that goes on the screen.

Buy it, then decide what runs on it.

Sale

Buy

Open frame displays are sold. We supply the screen with its dimensions for your joiner, fit it into your furniture in Switzerland and cover it with a 2-year warranty.

Request a quote See the five sizes
Software, optional

Run

DATAVSN, our own CMS, if you want it. Never imposed. The screen runs from our Android player, built into the 24-inch and optional on the other sizes, or from any source you already own.

Your content

The price, explained.

We do not publish a tariff: every project is quoted on a brief, because every place is different. Five things move the figure, and the offer you receive lists them one by one.

Request a quote
Written offer, line by lineOpen frame displays
  1. The sizeFrom 24 to 55 inches.
    per size
  2. The brightness500 nits as standard, up to 1’500 nits where the light is strong.
    per model
  3. How manyOne screen, or several in the same furniture.
    per piece
  4. The optionsTouch, our Android player, DATAVSN.
    per option
  5. Delivery and installationWhere the screen goes, access to the place, and the fitting itself.
    per site

How we quote. You describe the furniture, the light and the size you have in mind, and we come back with a written offer, line by line.

TotalOn your brief

Datasheet.

Five sizes, for sale. What follows is what your joiner can plan with; the rest comes with the written offer.

Front view of the 32-inch open frame display The 32-inch open frame display seen from the front: 726.5 millimetres wide and 420.9 millimetres high, 1920 by 1080 pixels. 32-inch, front view 1920 × 1080 726.5 mm 420.9 mm 52 mm deep · 1’000 nits · portrait or landscape
Front view of the 32-inch display: 726.5 mm wide and 420.9 mm high, 52 mm deep. The four other sizes are in the table.
24-inch
564.4 × 340.4 mm
23.8 inches, 40.8 mm deep, 6 kg. 500 nits, Full HD. Built-in Android player, VESA 100, 30 W.
27-inch
618 × 360 mm
52.6 mm deep. 500, 1’000 or 1’500 nits, Full HD. VESA 300 × 200, under 60 W, −20 to +60 °C.
32-inch
726.5 × 420.9 mm
52 mm deep. 1’000 nits, Full HD, IPS panel, light sensor. About 90 W.
46-inch
1’050.6 × 610.3 mm
78.7 mm deep, 18 kg. 500 nits, Full HD. VESA 400, 80 W, −20 to +70 °C.
55-inch
1’233.8 × 704.6 mm
47.7 mm deep, 15 kg. 500 nits, 4K. VESA 400, 80 W.
Mounting
Portrait or landscape
Every size, on a VESA mount, with clearance behind for ventilation.
Touch
Optional
On every size.
Player
Android
Built into the 24-inch, optional on the other sizes. DATAVSN if you want it.
Use
Indoors
Built into furniture, counters and walls.
Warranty
2 years
HYPERVISUAL warranty.
ForShop furniture, pop-up stores, counters, welcome desks and walls, for sale.
Who builds whatYou, your joiner or your shopfitter build the furniture; we supply and fit the screen.
Smaller than 24 inchesOn special request.

Open frame on DATAVSN.

Our own CMS, hosted in Switzerland, if you want it, and never imposed: our Android player or a source you already own drives the screen just as well.

  1. Content and scheduling

    Publish, schedule and update your screens from one place. The base of every DATAVSN installation.

  2. Anonymous audience recognition

    Foot traffic, stop rate, dwell time, attention time, age and gender brackets. Metrics only: no face is recognised.

  3. Interactivity

    Touch, sensors and live data when the screen has to respond, not just display.

See DATAVSN

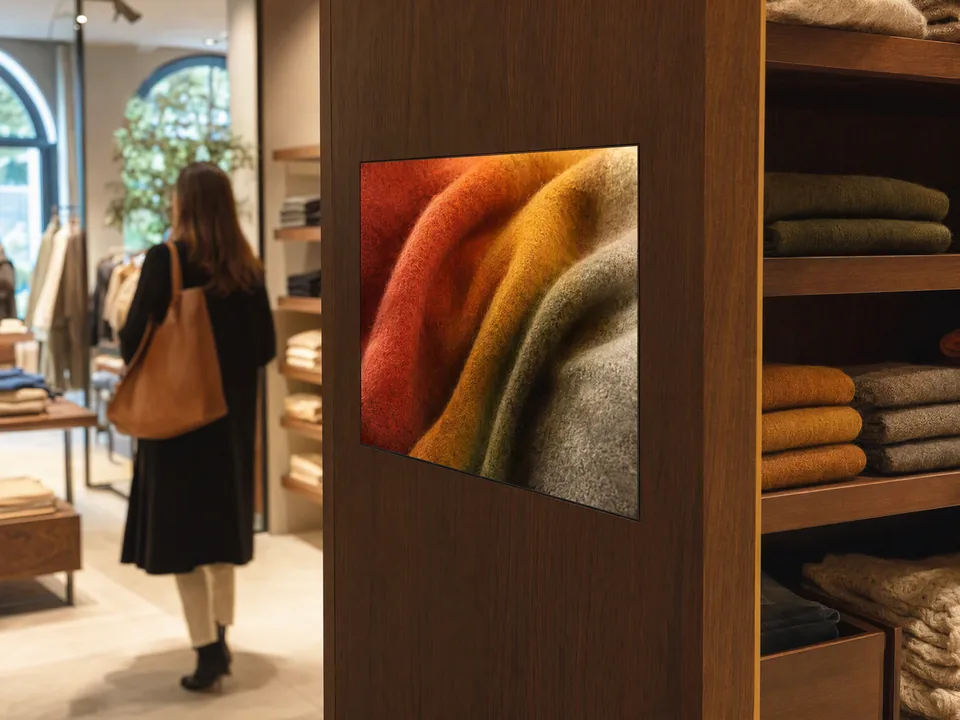

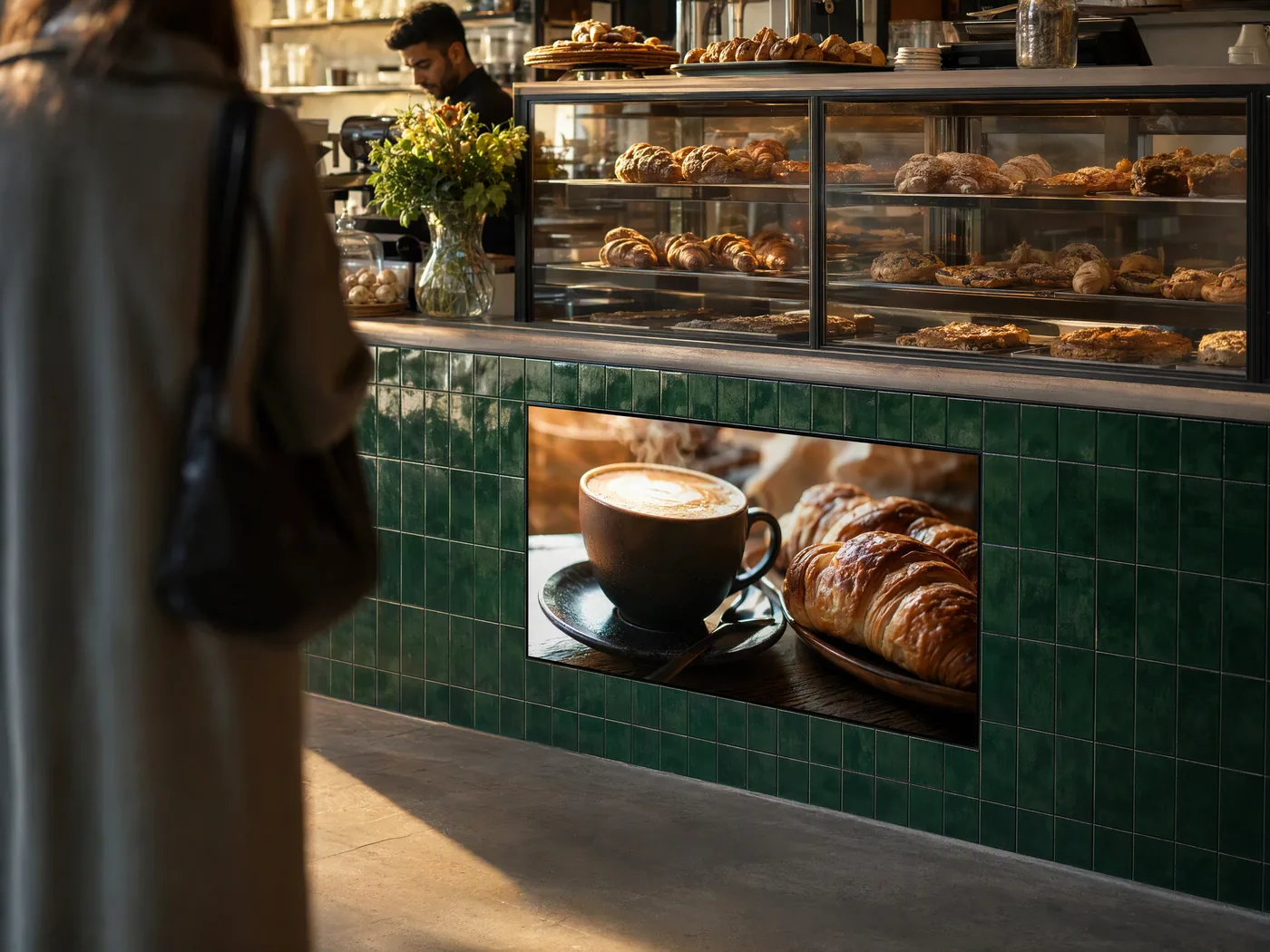

Open frame display in shop furniture showing scheduled content
The content is scheduled from one place, the screen stays flush in the furniture.

Your questions.
Answered straight.

Anything specific to your place is settled with the written offer.

What is an open frame display?

An LCD screen delivered without a housing, on a bare chassis with a VESA mount, made to be built into furniture, a counter or a wall so that only the picture shows.

What sizes are available?

Five sizes: 24, 27, 32, 46 and 55 inches. Each comes with its exact width, height and depth for your joiner. Smaller than 24 inches: on special request.

Who builds the furniture?

You, your joiner or your shopfitter. We supply the screen, its dimensions and the ventilation clearance to leave, then fit and connect it.

Can it be read in direct sunlight?

Not with 500 nits. The 27-inch comes in 1’000 or 1’500 nits and the 32-inch gives 1’000 nits, for bright interiors.

Is touch available?

Yes, as an option on every size.

Portrait or landscape?

Both. Every size mounts in portrait or in landscape.

Other Digital Signage solutions.

Line illustration of a large portrait LED screen behind a shop window, seen from the pavement
Window LEDOpaque LED behind the glass, readable from the street.
 Line illustration of a fixed giant LED wall on the back wall of a jewellery boutique
Indoor LED wallsFine-pitch walls for showrooms, lobbies and retail, read from a metre away.
 Line illustration of a transparent MicroLED display case in a jewellery boutique, a customer touching the glass
Transparent MicroLEDSee-through glass that shows content and keeps the view behind it.
Open frame displays in Switzerland

Let's talk about
your built-in screen

Tell us the furniture and the light around it. We come back with a written offer for the screen you need, sized and priced, not a catalogue.

  1. The size you have in mind. From 24 to 55 inches, portrait or landscape.
  2. The furniture. A counter, a welcome desk, a column or a wall, and who builds it.
  3. The content you have, or what you would like to show.
Request a quote Pick your size

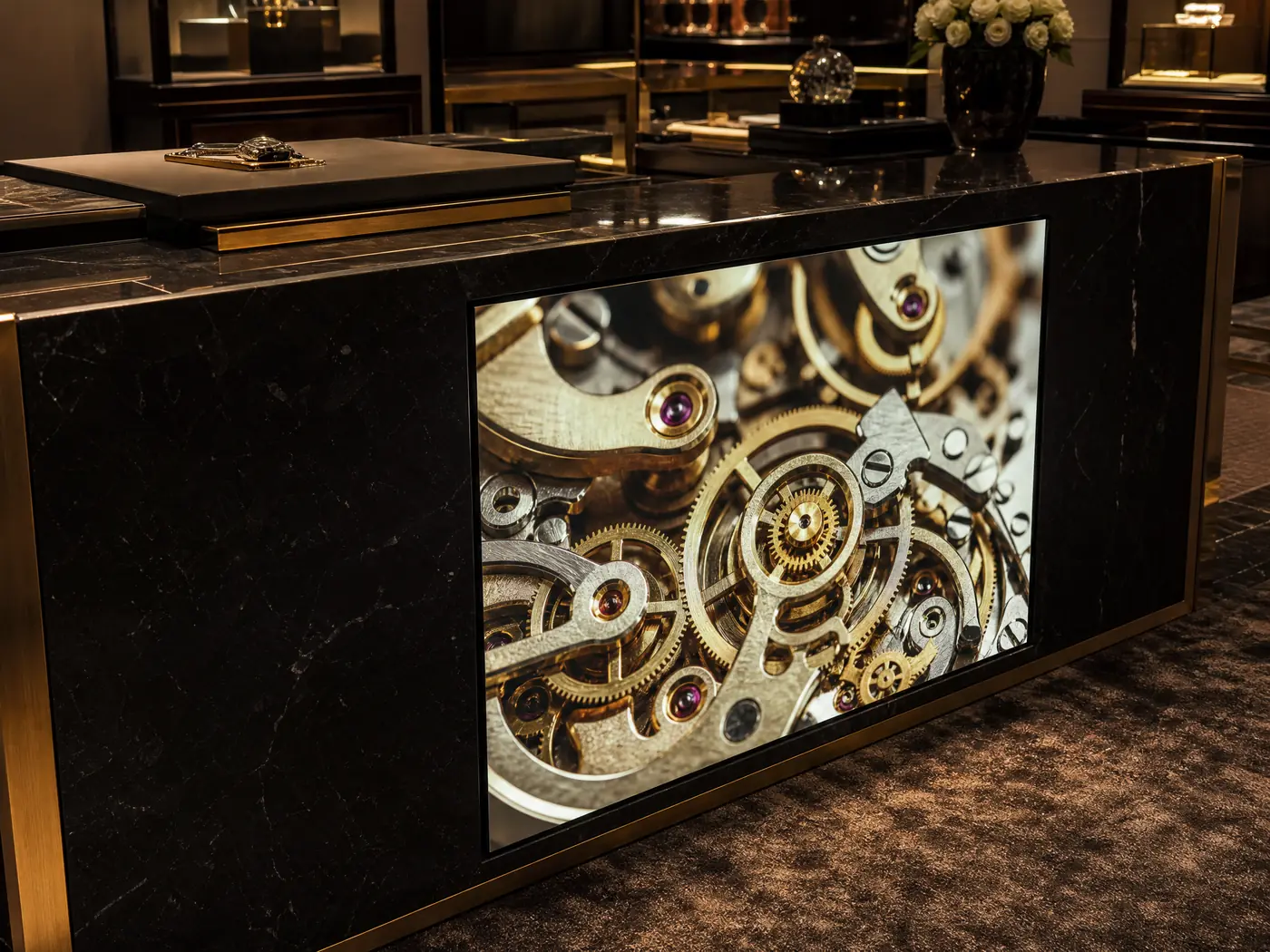

Open frame display built flush into a shop counter
Open frame display: the screen disappears into the furniture, only the picture shows.
