LED · HYPERVISUAL Switzerland

Transparent LED film for shop windows and glass facades.

A self-adhesive LED film applied to the inner face of your existing glazing: the glass itself becomes the display. No frame, no structural work, removable without damage.

Request a quote

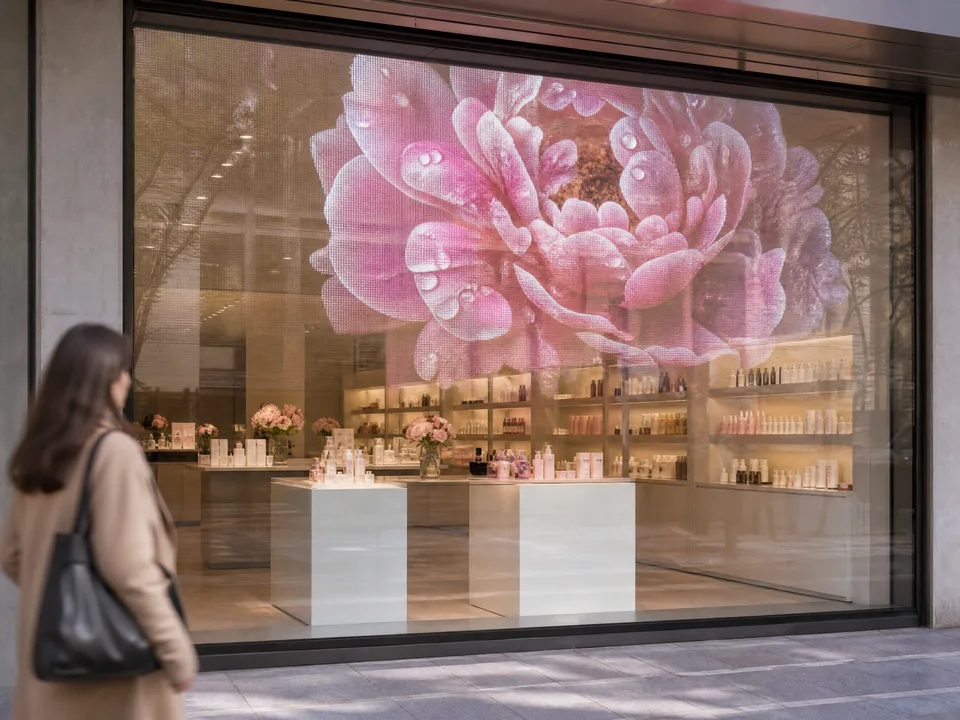

Transparent LED film in use.

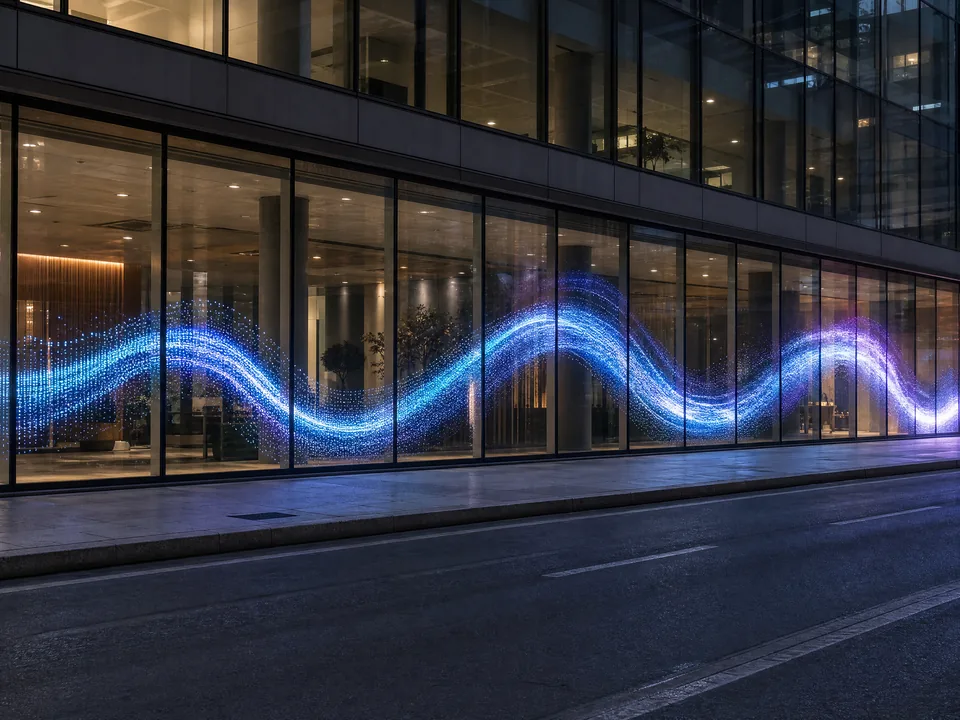

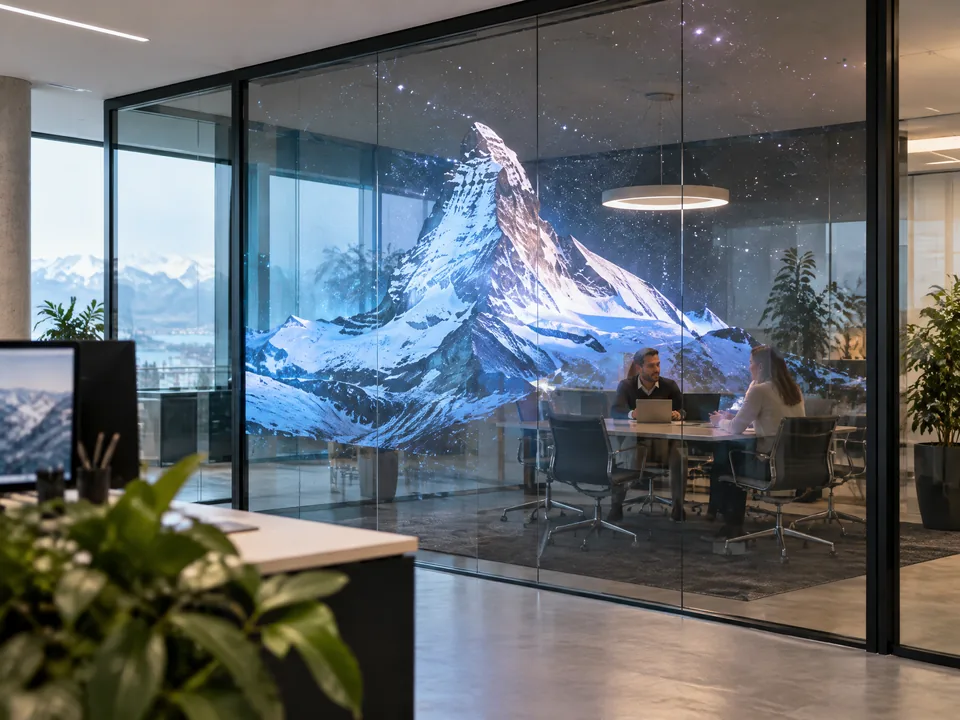

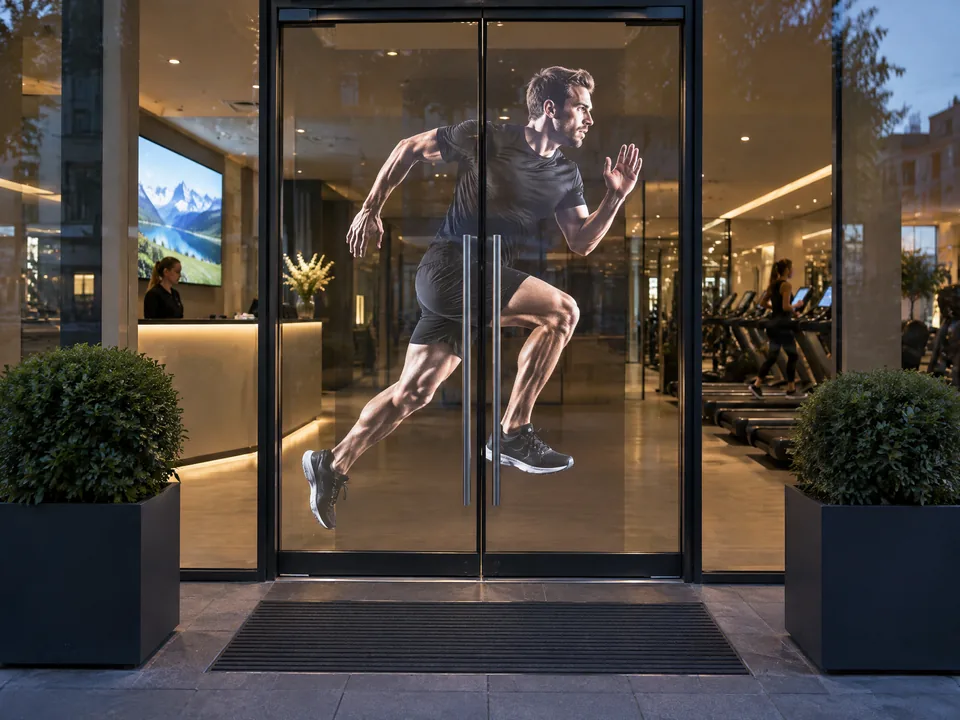

On a shop window, a glass facade, an office partition or a glass door: the view stays, the picture appears.

No example in this category yet.

See it to scale.

A module and a shop window, drawn to scale beside a person of 1.75 m. The film is laid module by module, to the size of your glass.

A module of transparent LED film and a shop window drawn to scaleA module of transparent LED film, 400 millimetres wide and 1’000 millimetres high, and a shop window of 2 metres by 2 metres covered by 10 modules, each drawn to scale beside a person of 1.75 metres. The selected view is shown in cyan.400 mm1’000 mm2’000 mm2’000 mm
400 × 1’000 mm

P6.25 · 2.0 mm thick · 1.3 kg · a 44 mm power and data bar at the top

Shown here: P6.25, our standard film. Other pitches on request: P4, P5, P8, P15 or P20. For sale, applied indoors, on the inner face of the glass.

Send this to my brief

Format

Transparent by day, a screen by night.

92% transparent

The film lets 92% of the light through when it is off: the view and the daylight stay. Switched on, the same glass becomes a bright video surface, with 2’000 nits as standard and 4’000 nits where the sun hits the window.

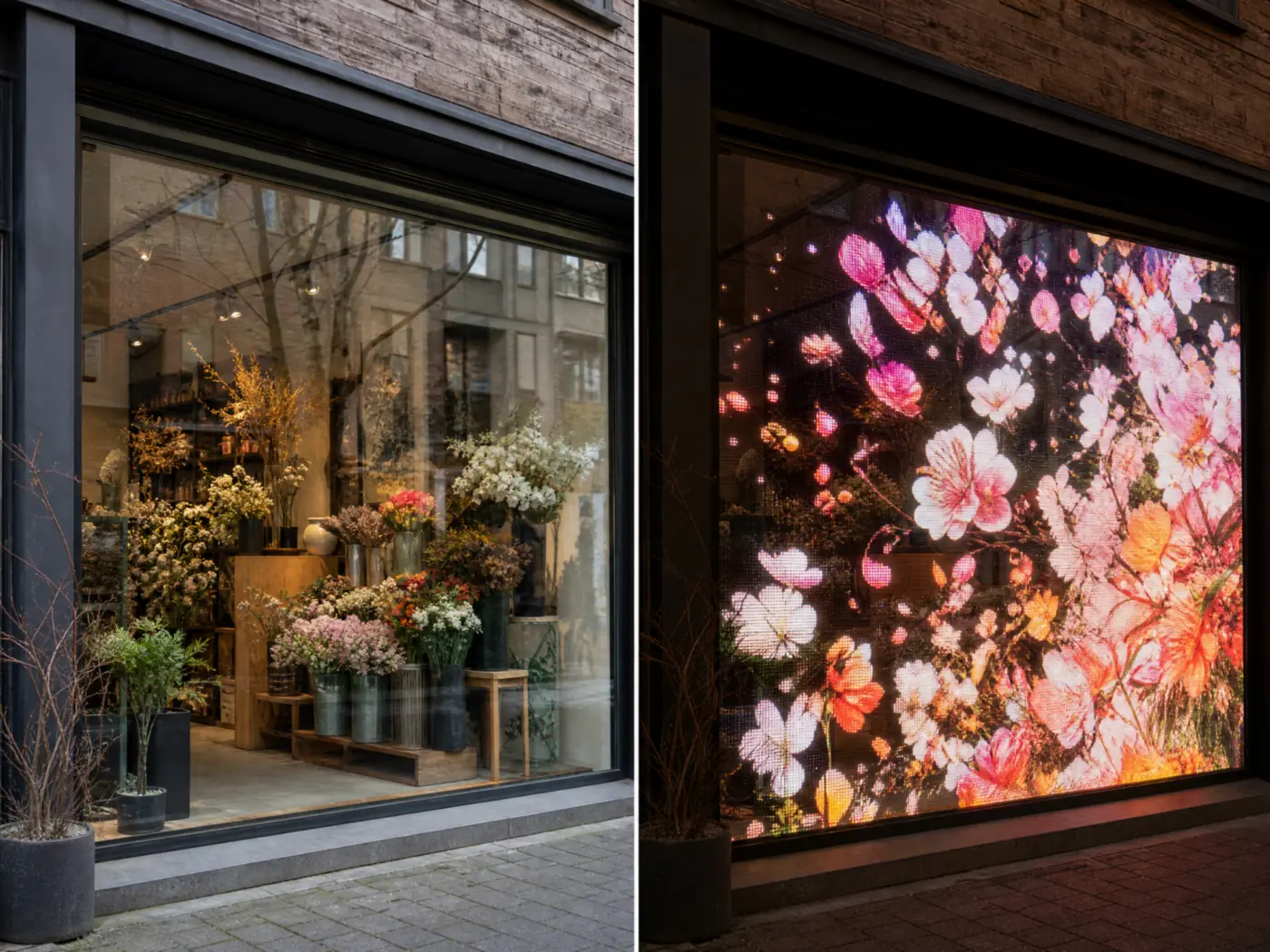

The same shop window by day, transparent, and at night, showing a bright picture

On your glass, no building work.

2.0 mm · 1.3 kg per module

The film is self-adhesive and goes on the inner face of the glazing you already have. No frame, no structural change, and it comes off without damage. Modules sit edge to edge.

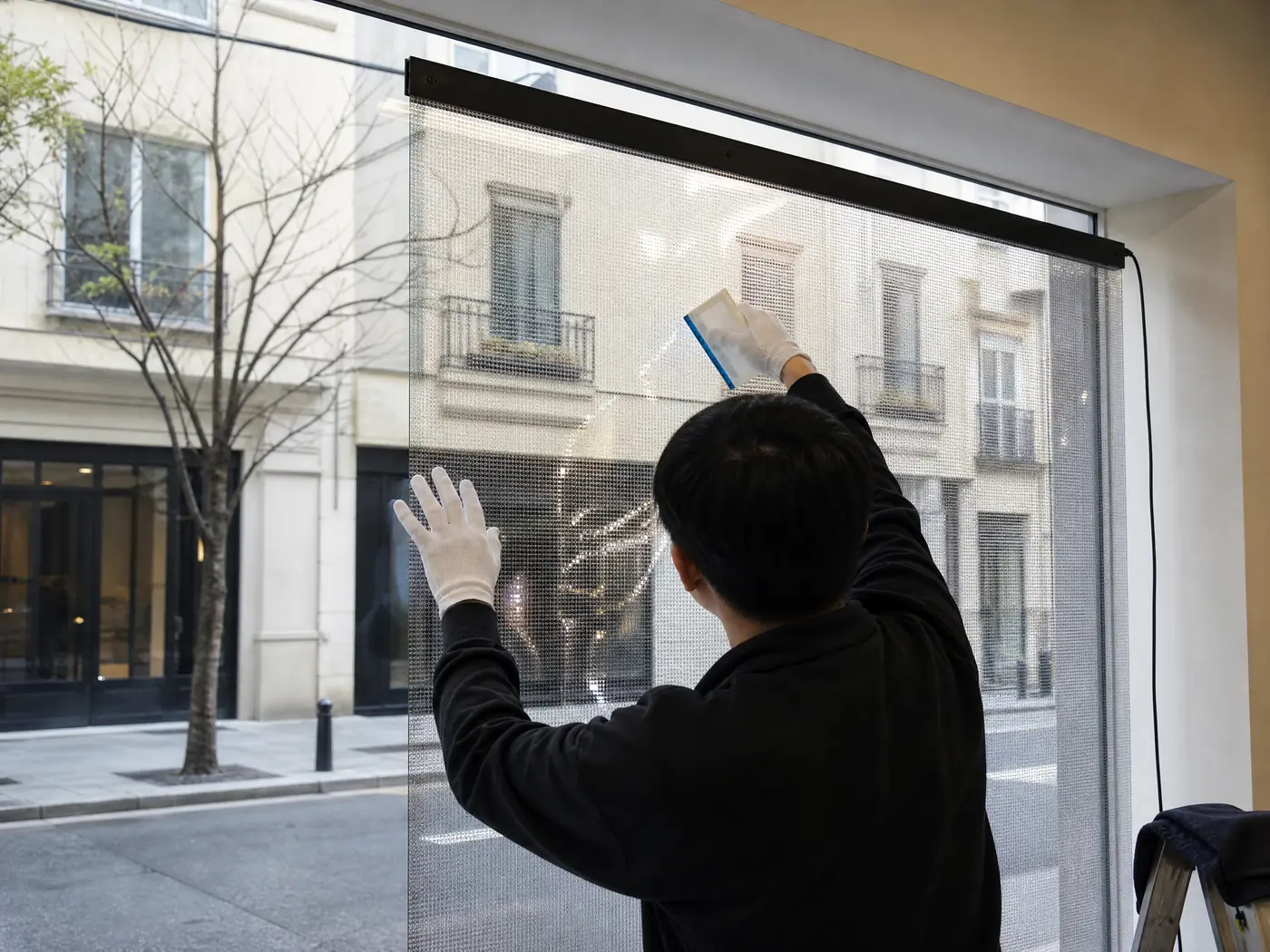

Technician applying a module of transparent LED film to the inside of a shop window

A display, not a hologram.

Said plainly

LED film shows a transparent picture on the glass. It does not make the picture float in space: for that effect on a shop window, the product is invisible holographic LED.

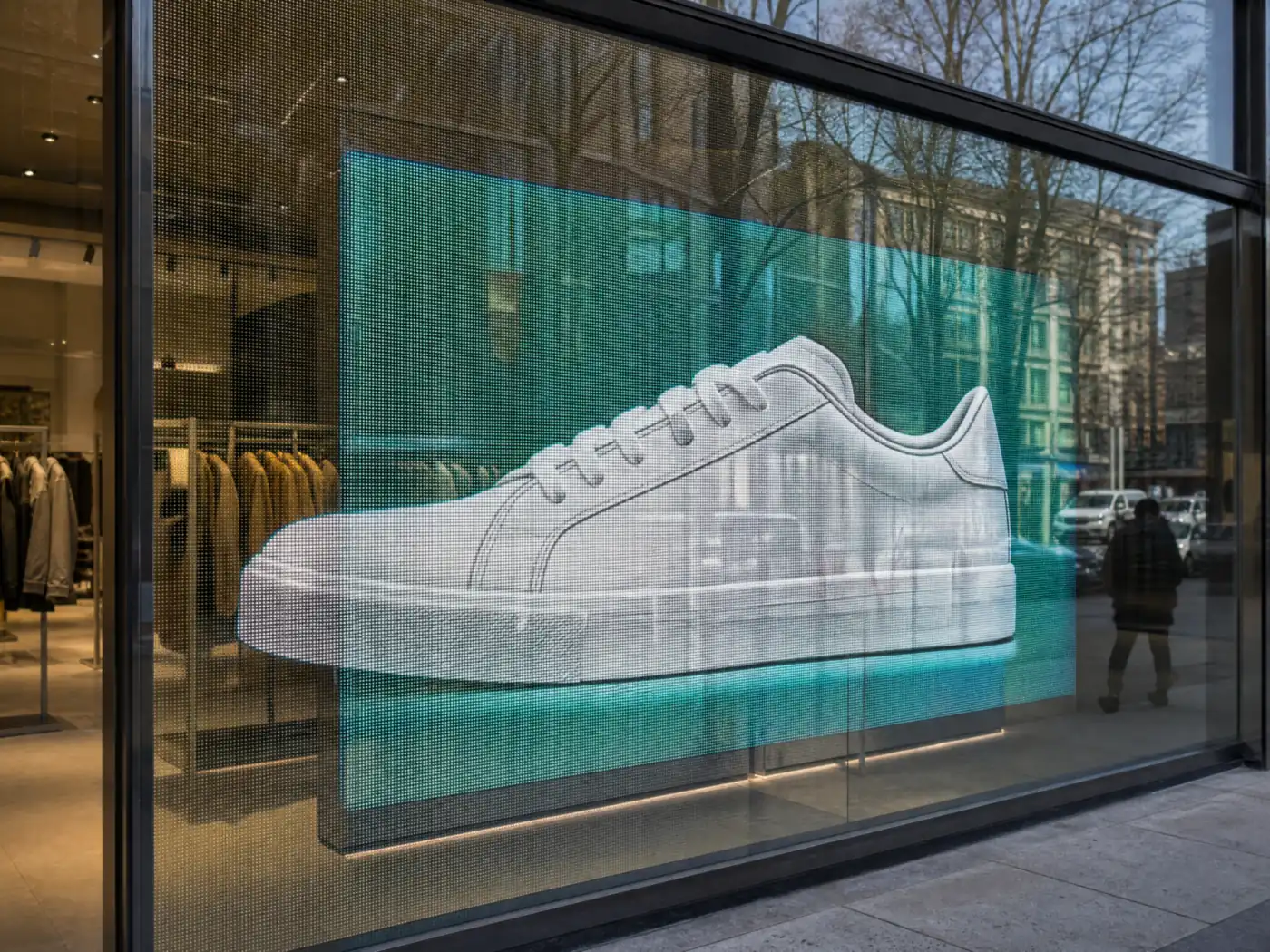

Picture showing on the glass of a shop window fitted with LED film

One LED team. Six steps.

  1. Line illustration: in a shopping mall atrium, the future screen is outlined in dashes on the wall above a shop entrance, a technician measures it with a laser meter while the client holds a tablet showing the project01
    SurveyThe glass, the sun on it, sightlines from the street, power and network: from your plans, on site if necessary.
  2. Line illustration: the design studio of the integrator, two people at a desk with monitors showing the panel layout of a giant LED wall, printed elevations on the wall, an LED panel, a video processor and an equipment rack02
    DesignModule layout glass by glass, pixel pitch, brightness, cable routes, a written proposal.
  3. Line illustration: the reception hall as a work site, a scissor lift in front of the wall, a technician fixing the panel, half the structure already covered, flight case and toolbox on the floor03
    InstallOur own crew, our own tools, on your dates: the film applied to the inner face of the glass, module by module.
  4. Line illustration: a showroom in the evening, the display lit on the back wall, a technician on a flight case with a laptop and a colour probe on a tripod04
    CalibrateEvery module addressed, brightness set for the street and for the night, joints checked.
  5. Line illustration: a hotel lobby with a giant screen lit on the back wall, a technician handing the control tablet to the client, guests with suitcases watching05
    OperateSources tested, your team shown the controls. Your own sources, or DATAVSN.
  6. Line illustration: the hotel lobby, one panel removed from the giant screen and held by a technician on a stepladder, a colleague with a laptop plugged into the wall, an open case of spare panels and tools06
    CareA 2-year warranty, modules serviced in place, and the same crew that installed the film.

No subcontractor between you and the glass. The people who size your film are the people who switch it on, across Switzerland and into Europe.

Before we come

What the site needs

  • Clean, accessible glazing; low-iron glass is recommended
  • A dedicated power supply and a network point at the screen
  • Room at the top of the glass for the 44 mm power and data bar
  • Access to the inside of the glass on the day
One team

Who does what

HYPERVISUAL
Survey, supply, installation, calibration, commissioning, maintenance.
You or your contractor
Upstream electrics and network.
Together
The technical check, on site if necessary, the schedule around your opening hours, and the content that goes on the glass.

Bought once, installed by us.

Purchase

Supplied and installed

LED film is sold, configured glass by glass. We survey the glazing, supply the film, apply it and commission it, with a 2-year warranty.

Request a quote See a module to scale
Software, optional

Run

DATAVSN, our own CMS, if you want it. Never imposed. The film takes content over the network, from a cloud CMS or from a USB key, with day and night programmes and automatic dimming.

Your content

The price, explained.

We do not publish a tariff: every project is quoted on a brief, because every place is different. Five things move the figure, and the offer you receive lists them one by one.

Request a quote
Written offer, line by lineTransparent LED film
  1. The glass surfaceThe width and height of each pane to cover.
    per m²
  2. The pixel pitchP6.25 as standard; P4, P5, P8, P15 or P20 on request.
    per pitch
  3. The brightness2’000 nits, or 4’000 nits for a window in full sun.
    per option
  4. How many panesOne window, or a whole facade.
    per pane
  5. Delivery and installationAccess to the glass, and the application itself.
    per site

How we quote. You describe the glazing, the light that hits it and what you want to show, and we come back with a written offer, line by line.

TotalOn your brief

Datasheet.

One standard film, for sale. What follows is what you can plan with; the rest comes with the written offer.

Front view of a module of transparent LED film A module of transparent LED film seen from the front: 400 millimetres wide and 1’000 millimetres high, with a 44-millimetre power and data bar at the top. One module, front view 400 mm 1’000 mm 2.0 mm thick · 1.3 kg · 44 mm power and data bar at the top
Front view of a module: 400 mm wide and 1’000 mm high. Modules are set edge to edge to the size of the glass.
Pixel pitch
P6.25
Our standard film. P4, P5, P8, P15 or P20 on request.
Transparency
92%
With the LEDs off.
Brightness
2’000 nits
4’000 nits as an option for full sun. 300 to 600 nits recommended at night, with automatic dimming.
Module
400 × 1’000 mm
2.0 mm thick, 1.3 kg. Set edge to edge.
25’600 px per m²
16-bit, 3’840 Hz refresh, 160° viewing angle. Best seen from 6 m and more.
Power
200 W per m²
On average; 600 W per m² at peak. 100 to 240 V.
Control
Novastar
Content over the network, from a cloud CMS or a USB key. Day and night programmes.
Environment
Indoors
Behind the glazing. −20 to +55 °C, 10 to 90% humidity.
Glass
Low-iron recommended
The film is discreet beyond about 3 m.
Warranty
2 years
HYPERVISUAL warranty.
ForShop windows, glass facades, office partitions and glass doors, for sale.
PitchesP6.25 as standard; P4, P5, P8, P15 and P20 on request.
A floating pictureNot with film: see invisible holographic LED.

LED film on DATAVSN.

Our own CMS, hosted in Switzerland, if you want it, and never imposed: the film also takes content over the network, from another cloud CMS or from a USB key.

  1. Content and scheduling

    Publish, schedule and update your screens from one place. The base of every DATAVSN installation.

  2. Anonymous audience recognition

    Foot traffic, stop rate, dwell time, attention time, age and gender brackets. Metrics only: no face is recognised.

  3. Interactivity

    Touch, sensors and live data when the window has to respond, not just display.

See DATAVSN

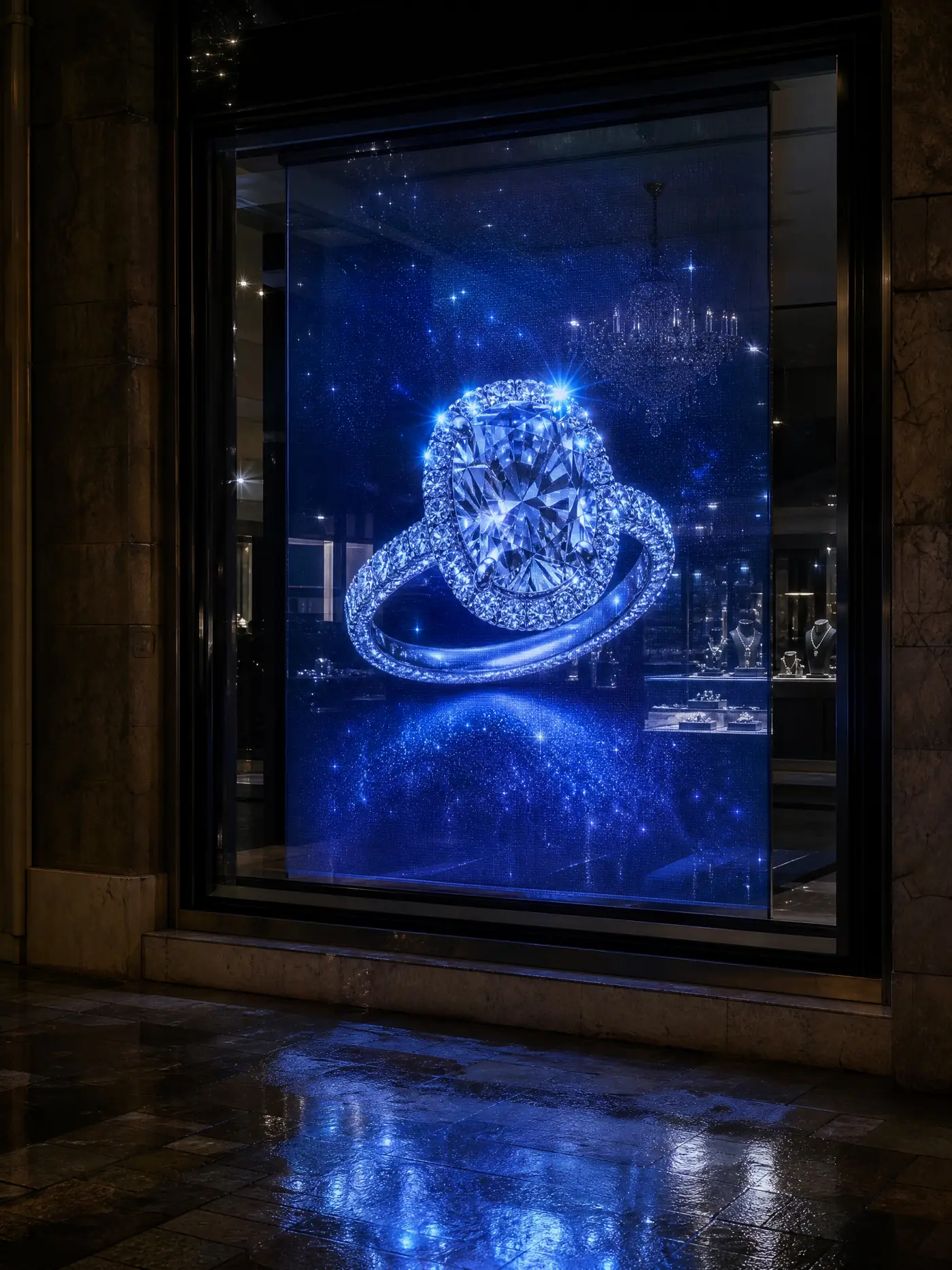

Shop window fitted with LED film showing scheduled content at night
Day and night programmes: transparent during opening hours, a display after closing.

Your questions.
Answered straight.

Anything specific to your place is settled with the written offer.

Does the film block the view?

No. With the LEDs off, the film lets 92% of the light through, and it is discreet beyond about 3 m.

Does it need building work?

No. The film is self-adhesive and goes on the inner face of your existing glazing, with no frame and no structural change. It can be removed without damage.

Is it bright enough for a sunny window?

2’000 nits as standard, and 4’000 nits as an option for a window in full sun. At night, automatic dimming brings it down to the 300 to 600 nits recommended.

Does LED film make the picture float like a hologram?

No. LED film shows a transparent picture on the glass. For a picture that seems to float in space on a shop window, the product is invisible holographic LED.

What sizes are available?

The film comes in modules of 400 × 1’000 mm, set edge to edge to the size of your glass: a window of 2 × 2 m takes 10 modules. Other pitches are available on request: P4, P5, P8, P15 or P20.

Can I rent LED film?

No. LED film is sold, configured glass by glass and installed by our team.

Other Digital Signage solutions.

Line illustration of a shop glass facade where the picture seems to float behind the glass
Invisible holographic LEDA frameless transparent LED screen set behind the glass: the picture seems to float in the window.
 Line illustration of a large portrait LED screen behind a shop window, seen from the pavement
Window LEDOpaque LED behind the glass, readable from the street.
 Line illustration of a transparent MicroLED display case in a jewellery boutique, a customer touching the glass
Transparent MicroLEDSee-through glass that shows content and keeps the view behind it.
Transparent LED film in Switzerland

Let's talk about
your glass

Tell us the glazing and the light that hits it. We come back with a written offer for the film you need, sized and priced, not a catalogue.

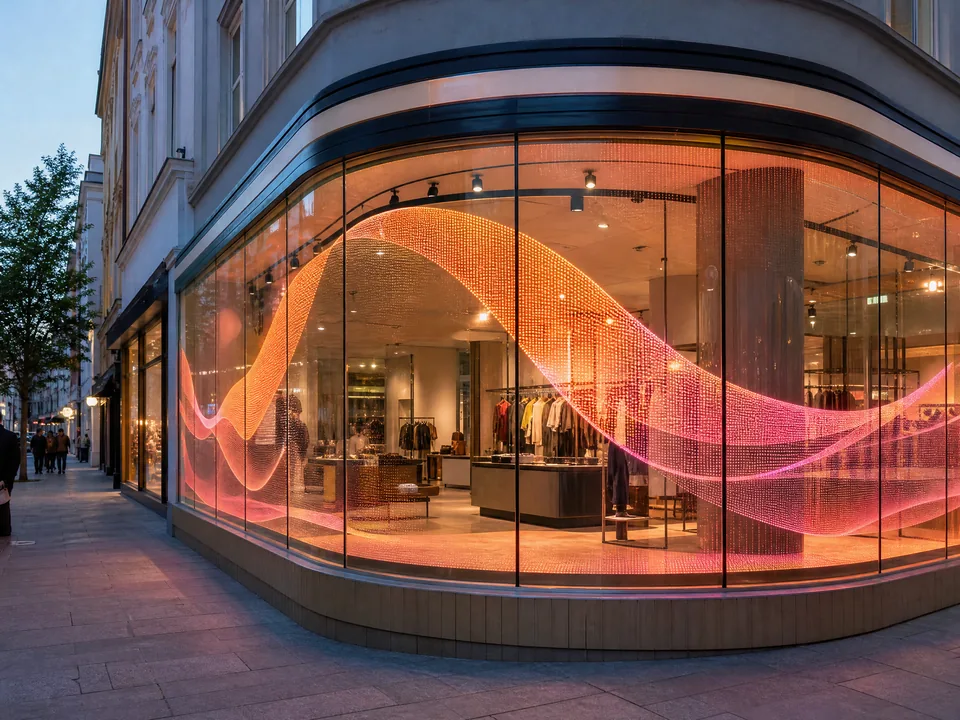

  1. The glass. The width and height of each pane, flat or curved.
  2. The light. In full sun or in the shade, and what is seen from the street.
  3. The content you have, or what you would like to show.
Request a quote See a module to scale

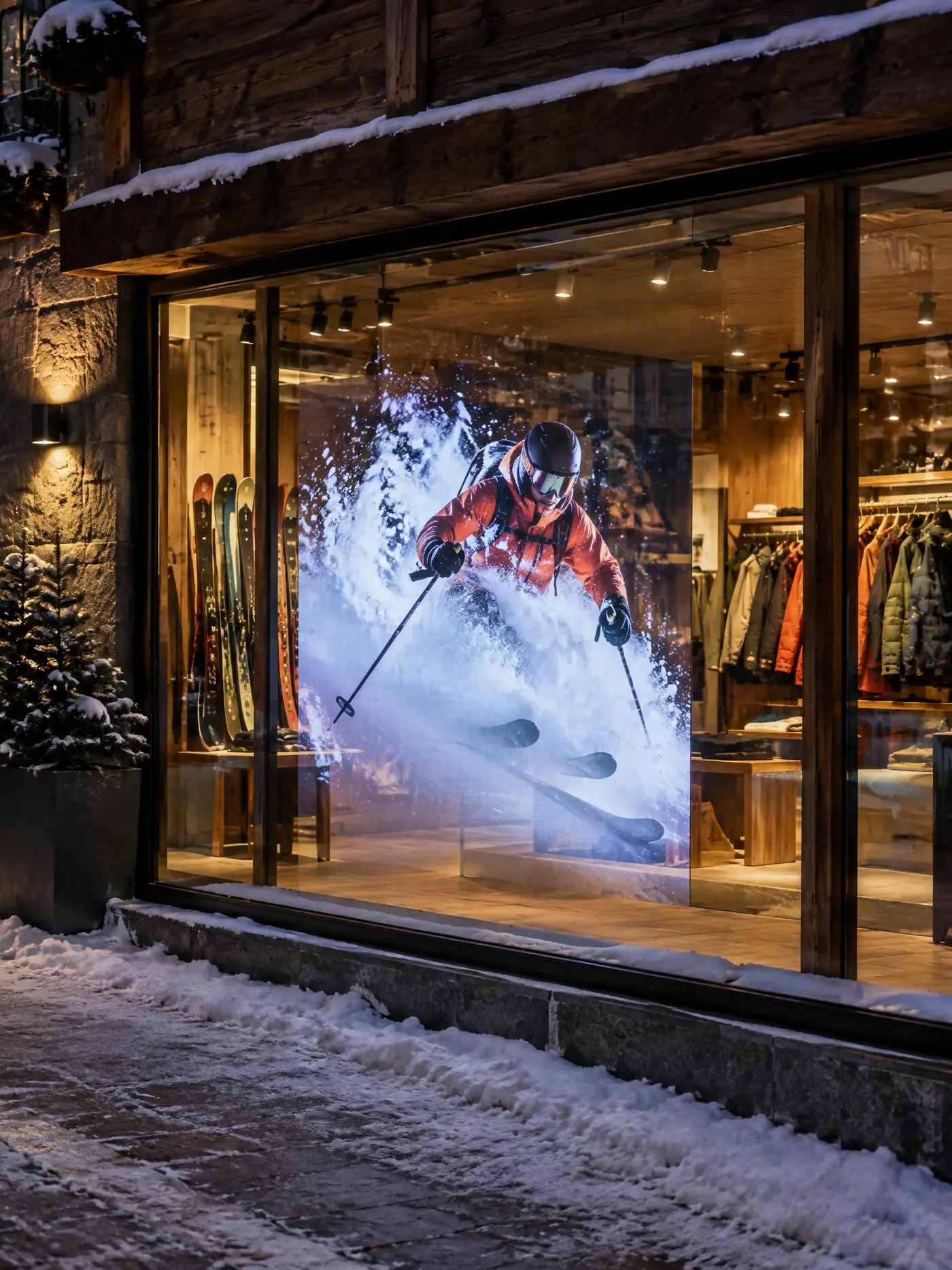

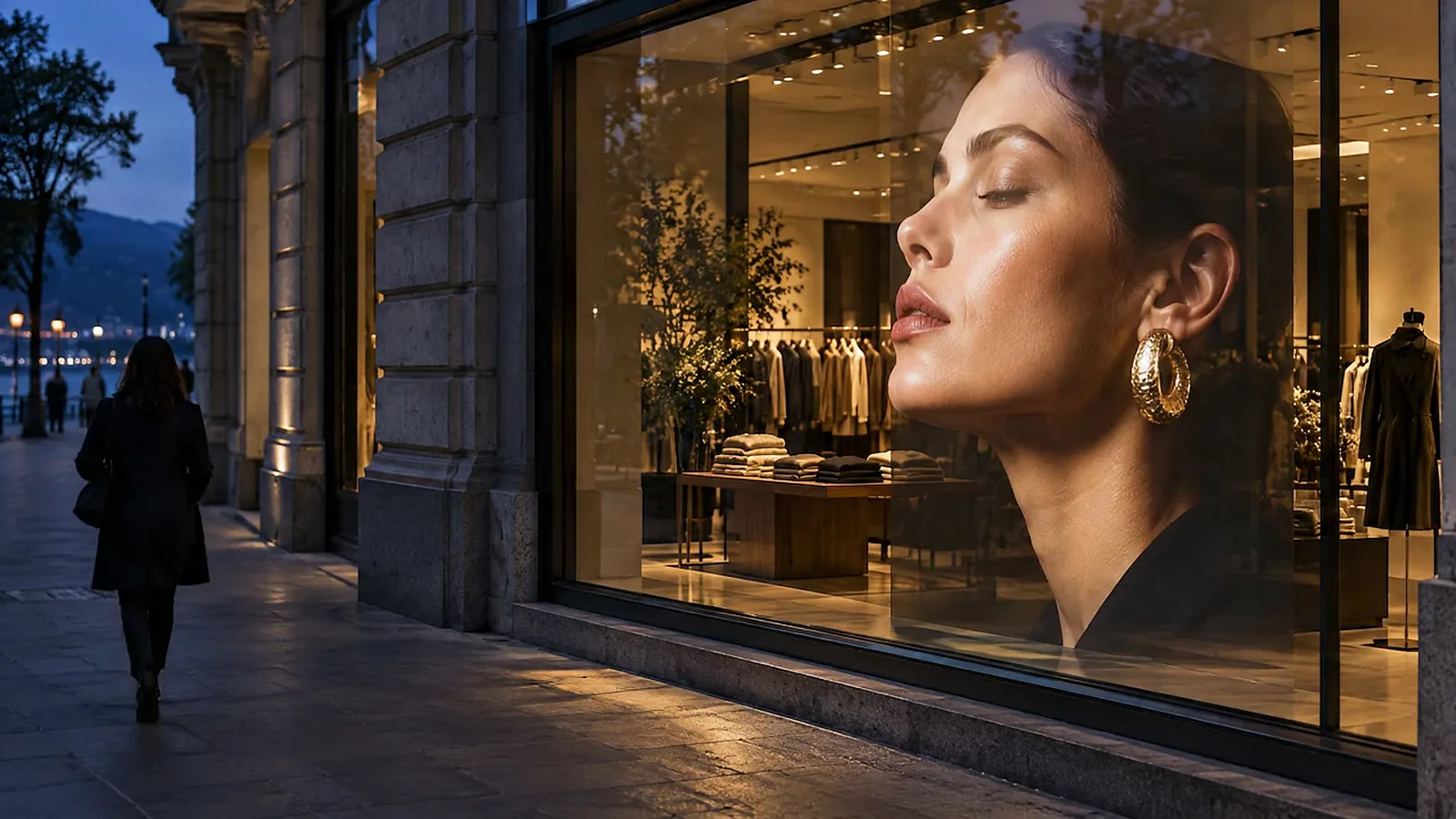

Shop window fitted with transparent LED film at night
Transparent LED film: the glass you already have becomes the display.
